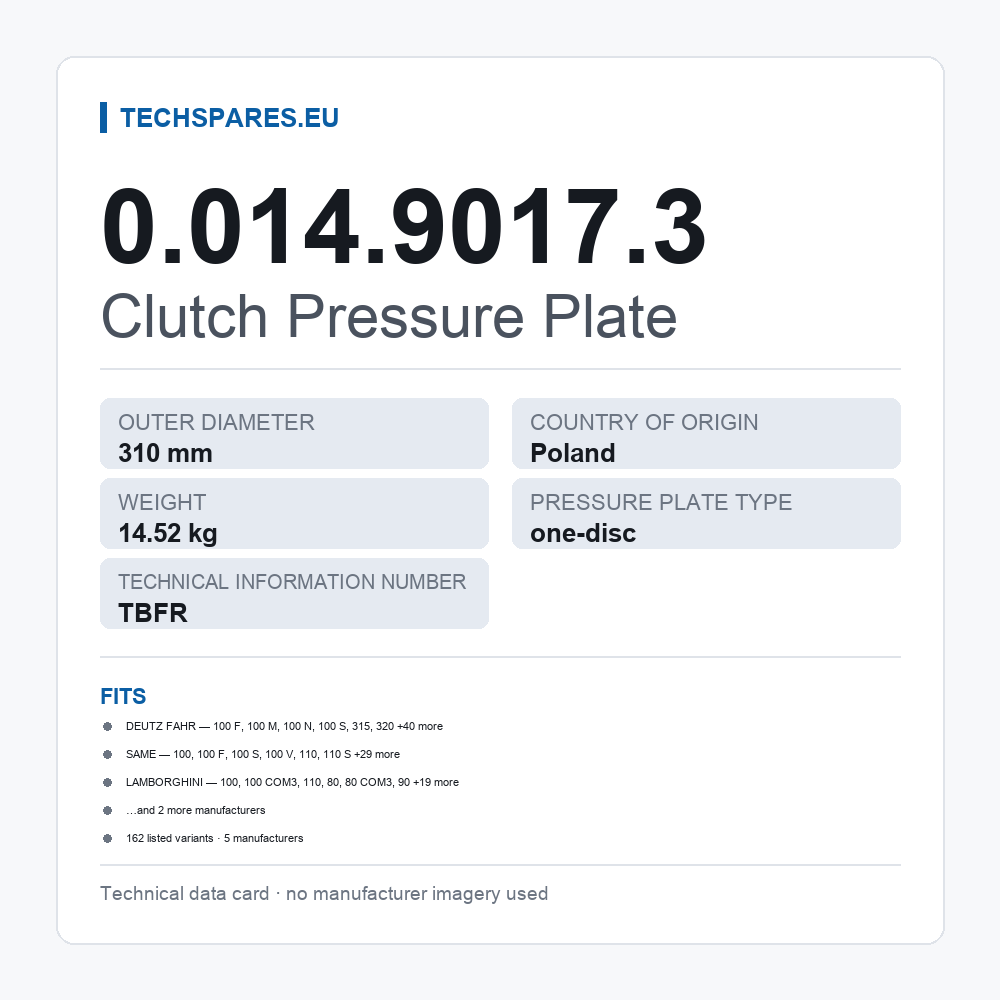

Clutch Pressure Plate 0.014.9017.3 — technical data card

Clutch Pressure Plate 0.014.9017.3

282,60 € incl. VAT · excl. VAT: 233,55 €

We dispatch within 1–4 business days of payment. The exact dispatch date is shown at checkout.

New clutch pressure plate, part number 0.014.9017.3. Fits 162 listed machine variants from 5 manufacturers. Ships from EU stock.

Manufactured by LUK · see Manufacturer & product safety
Original equipment numbers (3): SAME 0.014.9017.3 · CLAAS 00 1154 585 0 · DEUTZ-FAHR 0.014.9017.3
OEM numbers are shown for identification only and do not imply the part is an original manufacturer part.

11 in stock — ready for dispatch

SKU: 0.014.9017.3
Category:

Description

Clutch Pressure Plate 0.014.9017.3 is supplied in new condition. It is listed for 162 machine variants across 5 manufacturers. We ship from stock inside the EU — no import duty, no customs delay, no transatlantic wait.

Listed against original number 0.014.9017.3 (SAME) for identification and compatibility. This is not a SAME-branded product. It is a new part supplied in the producer’s original packaging — the producer is named in the Manufacturer & product safety section below, as Regulation (EU) 2023/988 requires.

Technical specification

Outer diameter 310 mm
Pressure plate type one-disc
Weight 14.52 kg
Country of origin Poland
Technical Information Number TBFR

Vehicle and machine applications (162)

Fits equipment from 5 manufacturers: CLAAS, DEUTZ FAHR, HUERLIMANN, LAMBORGHINI, SAME.

Grouped by manufacturer — click a group to expand. All listed variants are on this page.

DEUTZ FAHR — 49 variants
Make Model Engine Engine code Years kW hp ccm
DEUTZ FAHR 5000 5080 D – n/a – n/a — — —
DEUTZ FAHR 5000 5080 G – n/a – n/a — — —
DEUTZ FAHR 5000 5090 C TCD 3.6 L04 TIER 4I 2013/02 – n/a 63 86 3620
DEUTZ FAHR 5000 5090 D – n/a – n/a — — —
DEUTZ FAHR 5000 5090 G – n/a – n/a — — —
DEUTZ FAHR 5000 5090.4 D – n/a – n/a — — —
DEUTZ FAHR 5000 5090.4 G – n/a – n/a — — —
DEUTZ FAHR AGROCLIMBER 100 M – n/a – n/a — — —
DEUTZ FAHR AGROCLIMBER 100 N – n/a – n/a — — —
DEUTZ FAHR AGROCLIMBER 400 F – n/a – n/a 62 85 4000
DEUTZ FAHR AGROCLIMBER 410 F – n/a – n/a 70 95 4000
DEUTZ FAHR AGROCLIMBER 90 C – n/a – n/a — — —
DEUTZ FAHR AGROCLIMBER 90 M – n/a – n/a — — —
DEUTZ FAHR AGROCLIMBER 90 N – n/a – n/a — — —
DEUTZ FAHR AGROFARM 410 TD 2012 L04 2010/01 – n/a 62 84 4038
DEUTZ FAHR AGROFARM 410 T – n/a – n/a 62 85 4038
DEUTZ FAHR AGROFARM 410 T ECOLINE – n/a – n/a 62 85 4038
DEUTZ FAHR AGROFARM 410 TB – n/a – n/a 62 85 4038
DEUTZ FAHR AGROFARM 420 T ECOLINE – n/a – n/a 73 99 4038
DEUTZ FAHR AGROFARM 420 TB – n/a – n/a 73 99 4038
DEUTZ FAHR AGROFARM 75 C – n/a – n/a — — —
DEUTZ FAHR AGROFARM 80 C – n/a – n/a — — —
DEUTZ FAHR AGROFARM 85 BF 4M 2012 C n/a – n/a 56 76 40388
DEUTZ FAHR AGROFARM 85 ECOLINE – n/a – n/a — — —
DEUTZ FAHR AGROLUX 80 F 4L 913 2000/01 – 2008/12 58 79 4086
DEUTZ FAHR AGROLUX 85 – n/a – n/a — — —
DEUTZ FAHR AGROPLUS 100 F – n/a – n/a — — —
DEUTZ FAHR AGROPLUS 100 S 1000.4 WT n/a – n/a 66 90 4000
DEUTZ FAHR AGROPLUS 315 – n/a – n/a — — —
DEUTZ FAHR AGROPLUS 320 1000.3WT 2009/01 – n/a 60 82 3000
DEUTZ FAHR AGROPLUS 320 F 1000.3WT 2009/01 – n/a 60 82 3000
DEUTZ FAHR AGROPLUS 320 V 1000.3 WTI 2010/01 – n/a 60 82 3000
DEUTZ FAHR AGROPLUS 330 V – n/a – n/a — — —
DEUTZ FAHR AGROPLUS 410 1000.3WT 2009/01 – n/a 63 86 4000
DEUTZ FAHR AGROPLUS 410 F 1000.4 WT 2009/01 – n/a 62 85 —
DEUTZ FAHR AGROPLUS 410 V 1000.4 WTI 2010/01 – n/a 62 85 —
DEUTZ FAHR AGROPLUS 420 F 1000.4 WT 2009/01 – n/a 71 96 4000
DEUTZ FAHR AGROPLUS 420 V 1000.4 WTI 2010/01 – n/a 71 96 —
DEUTZ FAHR AGROPLUS 430 V – n/a – n/a 75 102 —
DEUTZ FAHR AGROPLUS 70 F – n/a – n/a — — —
DEUTZ FAHR AGROPLUS 70 S 1000.3WT 2005/01 – 2007/12 51 70 3000
DEUTZ FAHR AGROPLUS 75 F – n/a – n/a — — —
DEUTZ FAHR AGROPLUS 75 S 1000.4W 2005/01 – 2007/12 51 70 4000
DEUTZ FAHR AGROPLUS 90 F – n/a – n/a — — —
DEUTZ FAHR AGROPLUS 90 S 1000.4 WT 2005/01 – 2007/12 61 83 4000
DEUTZ FAHR AGROPLUS S100 – n/a – n/a — — —
DEUTZ FAHR AGROPLUS S70 – n/a – n/a — — —
DEUTZ FAHR AGROPLUS S75 – n/a – n/a — — —
DEUTZ FAHR AGROPLUS S90 – n/a – n/a — — —
SAME — 43 variants
Make Model Engine Engine code Years kW hp ccm
SAME DORADO 1 / 2 80 TURBO – n/a – n/a — — —
SAME DORADO 1 / 2 90 FARMOTION – n/a – n/a — — —
SAME DORADO 1 / 2 90.4 FARMOTION – n/a – n/a — — —
SAME DORADO 1 / 2 F 100 1000.4 WT n/a – n/a 70 95 4000
SAME DORADO 1 / 2 F 70 1000.3WT n/a – n/a 51 70 3000
SAME DORADO 1 / 2 F 75 1000.4W n/a – n/a 54 74 4000
SAME DORADO 1 / 2 F 90 1000.4 WT n/a – n/a 64 87 4000
SAME DORADO 1 / 2 S 100 – n/a – n/a 70 95 4000
SAME DORADO 1 / 2 S 70 1000.3WT n/a – n/a 51 70 3000
SAME DORADO 1 / 2 S 75 1000.4W n/a – n/a 54 74 4000
SAME DORADO 1 / 2 S 90 1000.4 WT n/a – n/a 64 87 4000
SAME DORADO 3 70 1000.3WT 2009/09 – n/a 55 75 3000
SAME DORADO 3 80 1000.3WT, 1000.3 WTI2 2009/09 – n/a 60 82 3000
SAME DORADO 3 80 – 2013/11 – n/a 55 75 2887
SAME DORADO 3 90 – 2013/11 – n/a 65 88 2887
SAME DORADO 3 90 2WD 1000.4 WTI2 2009/01 – 2014/01 63 86 4000
SAME DORADO 3 90 4WD 1000.4 WTI2 2009/01 – 2014/01 63 86 4000
SAME EXPLORER 80 1000.4 A 1986/01 – 1990/12 59 80 4000
SAME EXPLORER 90 1000.4 AT 1986/01 – 1990/12 66 90 4000
SAME EXPLORER 90.4 – n/a – n/a — — —
SAME EXPLORER 3 85 TD 2012 L04 2009/10 – n/a 62 85 4038
SAME EXPLORER 3 85 BF 4M 2012 C 2007/01 – 2009/12 60 82 4038
SAME EXPLORER 3 85 T – n/a – n/a 62 85 4038
SAME EXPLORER 3 85 TB – n/a – n/a 62 85 4038
SAME EXPLORER 3 90 – n/a – n/a — — —
SAME EXPLORER 3 90 NATURAL – n/a – n/a — — —
SAME FRUTTETO 3 100 – n/a – n/a 71 96 4000
SAME FRUTTETO 3 100 S – n/a – n/a 71 96 4000
SAME FRUTTETO 3 100 V – n/a – n/a 71 96 4000
SAME FRUTTETO 3 110 – n/a – n/a 78 106 4000
SAME FRUTTETO 3 110 S – n/a – n/a 78 106 4000
SAME FRUTTETO 3 110 V – n/a – n/a 78 106 4000
SAME FRUTTETO 3 80 – n/a – n/a 60 82 3000
SAME FRUTTETO 3 80 S – n/a – n/a 60 82 3000
SAME FRUTTETO 3 80 V – n/a – n/a 60 82 3000
SAME FRUTTETO 3 90 – n/a – n/a 62 85 4000
SAME FRUTTETO 3 90 S – n/a – n/a 62 85 4000
SAME FRUTTETO 3 90 V – n/a – n/a 62 85 4000
SAME FRUTTETO 3 90.3 S – n/a – n/a 66 90 3000
SAME FRUTTETO 3 90.3 V – n/a – n/a 66 90 3000
SAME KRYPTON 3 100 F – n/a – n/a — — —
SAME KRYPTON 3 90 F – n/a – n/a — — —
SAME VIRTUS J 90 – n/a – n/a — — —
LAMBORGHINI — 35 variants
Make Model Engine Engine code Years kW hp ccm
LAMBORGHINI NITRO R 90 T4I – n/a – n/a — — —
LAMBORGHINI R R 2.70 1000.3 2013/10 – n/a 53 72 3300
LAMBORGHINI R R 2.76 1000.4 WT n/a – n/a 54 74 4000
LAMBORGHINI R R 2.80 1000.3 2013/10 – n/a 60 82 3300
LAMBORGHINI R R 2.86 1000.4 WT n/a – n/a 64 87 4000
LAMBORGHINI R R 2.90 – 2013/10 – n/a 62 85 4000
LAMBORGHINI R R 3.80 – n/a – n/a — — —
LAMBORGHINI R R 3.85 EVO – n/a – n/a — — —
LAMBORGHINI R R 3.85 EVO TARGET – n/a – n/a — — —
LAMBORGHINI R R 3.85 T – n/a – n/a — — —
LAMBORGHINI R R 3.85 TB – n/a – n/a — — —
LAMBORGHINI R R 3.90 – n/a – n/a — — —
LAMBORGHINI R R 3.90 T TARGET – n/a – n/a — — —
LAMBORGHINI R R 3.90 TREND – n/a – n/a — — —
LAMBORGHINI RF 100 1000.4 WT 2009/10 – n/a 71 97 4000
LAMBORGHINI RF 100 COM3 – n/a – n/a — — —
LAMBORGHINI RF 110 – 2009/10 – n/a 78 106 4000
LAMBORGHINI RF 80 COM3 1000.3 n/a – n/a — — 3000
LAMBORGHINI RF 90 1000.4 WT 2009/10 – n/a 63 86 4000
LAMBORGHINI RF 90 COM3 1000.4 WT n/a – n/a — — 4000
LAMBORGHINI RS 100 1000.4 WT 2009/10 – n/a 71 97 4000
LAMBORGHINI RS 100 COM3 – n/a – n/a — — —
LAMBORGHINI RS 110 – 2009/10 – n/a 78 106 4000
LAMBORGHINI RS 80 – 2009/10 – n/a 60 82 4000
LAMBORGHINI RS 90 2WD – 2009/10 – n/a 63 86 4000
LAMBORGHINI RS 90 4WD – 2009/10 – n/a 63 86 4000
LAMBORGHINI RS 90.3 – 2009/10 – n/a 66 90 4000
LAMBORGHINI RV 100 1000.4 WT n/a – n/a 70 95 4000
LAMBORGHINI RV 110 – n/a – n/a — — —
LAMBORGHINI RV 80 – n/a – n/a — — —
LAMBORGHINI RV 90 1000.4W n/a – n/a — — 4000
LAMBORGHINI RV 90.3 – n/a – n/a — — —
LAMBORGHINI SPIRE 80 – 2014/10 – n/a 55 75 2887
LAMBORGHINI SPIRE 90 2WD – 2014/10 – n/a 65 88 2887
LAMBORGHINI SPIRE 90.4 2WD – 2014/10 – n/a 65 88 3849
HUERLIMANN — 32 variants
Make Model Engine Engine code Years kW hp ccm
HUERLIMANN XA 70 – n/a – n/a — — —
HUERLIMANN XA 80 – n/a – n/a — — —
HUERLIMANN XA 80 FARMOTION – n/a – n/a — — —
HUERLIMANN XA 90 – n/a – n/a — — —
HUERLIMANN XA 90 FARMOTION – n/a – n/a — — —
HUERLIMANN XA 90.4 FARMOTION – n/a – n/a — — —
HUERLIMANN XB 80 T4I FARMOTION – n/a – n/a — — —
HUERLIMANN XB 85 MAX – n/a – n/a — — —
HUERLIMANN XB 85 MAX TRADITION – n/a – n/a — — —
HUERLIMANN XB 85 T – n/a – n/a — — —
HUERLIMANN XB 85 TB – n/a – n/a — — —
HUERLIMANN XB 90 – n/a – n/a — — —
HUERLIMANN XB 90 T TRADITION – n/a – n/a — — —
HUERLIMANN XB 90 T4I FARMOTION – n/a – n/a — — —
HUERLIMANN XB 90.4 T4I FARMOTION – n/a – n/a — — —
HUERLIMANN XF 100 – n/a – n/a 70 95 4000
HUERLIMANN XF 110 – n/a – n/a — — —
HUERLIMANN XF 70 – n/a – n/a 51 70 3000
HUERLIMANN XF 75 – n/a – n/a 54 74 4000
HUERLIMANN XF 80 – n/a – n/a — — —
HUERLIMANN XF 90 – n/a – n/a 64 87 4000
HUERLIMANN XM K 90 T4I – n/a – n/a — — —
HUERLIMANN XS 100 – n/a – n/a 70 95 4000
HUERLIMANN XS 110 – n/a – n/a — — —
HUERLIMANN XS 80 – n/a – n/a — — —
HUERLIMANN XS 90 – n/a – n/a 64 87 4000
HUERLIMANN XS 90.3 – n/a – n/a — — —
HUERLIMANN XV 100 – n/a – n/a — — —
HUERLIMANN XV 110 – n/a – n/a — — —
HUERLIMANN XV 80 – n/a – n/a — — —
HUERLIMANN XV 90 – n/a – n/a — — —
HUERLIMANN XV 90.3 – n/a – n/a — — —
CLAAS — 3 variants
Make Model Engine Engine code Years kW hp ccm
CLAAS ATOS 220 – 2014/11 – n/a 55 75 2887
CLAAS ATOS 230 – 2014/11 – n/a 62 84 2887
CLAAS ATOS 330 – 2014/11 – n/a 62 84 3849

OEM part number equivalent (3)

This part is listed as the equivalent of the original numbers below. If your machine’s parts book shows any of these, this is the item you need.

Number Brand
0.014.9017.3 SAME
00 1154 585 0 CLAAS
0.014.9017.3 DEUTZ-FAHR

Shipping and warranty

We dispatch within 1–4 business days of payment. The exact dispatch date is shown at checkout. Prices include 21 % VAT; the price without VAT is shown next to it. Business customers from another EU country with a valid VAT number pay 0 % VAT at checkout. Consumers have the statutory two-year EU warranty; business customers have our 12-month warranty — see Returns and refunds.

Manufacturer

Schaeffler Vehicle Lifetime Solutions Germany GmbH & Co. KG
De-Saint-Exupéry-Straße 8, 60549 Frankfurt am Main, Germany
E-mail: vehiclelifetimesolutions@schaeffler.com

Product identification

Our part code: 0.014.9017.3

Safety information

  • This part is intended for installation by a qualified technician following the machine manufacturer’s service instructions.
  • Before fitting, confirm that the part number matches your machine — the cross-reference table is in the product description.
  • Work only with the engine switched off and the battery disconnected; on hydraulic and pneumatic systems, depressurise the system first.
  • An incorrectly fitted part, or a part used for another purpose, can damage the machine or cause injury.
  • Store dry, in the original packaging, out of the reach of children.

Data taken from the manufacturer’s own official page: https://vehiclelifetimesolutions.schaeffler.com/en/legal-notice (checked 2026-07-30)
