Description
Engine radiator 1172917 is supplied in new condition. It is listed for 120 machine variants across 3 manufacturers. We ship from stock inside the EU — no import duty, no customs delay, no transatlantic wait.
Listed against original number 1172917 (NEW HOLLAND) for identification and compatibility. This is not a NEW HOLLAND-branded product. It is a new part supplied in the producer’s original packaging — the producer is named in the Manufacturer & product safety section below, as Regulation (EU) 2023/988 requires.

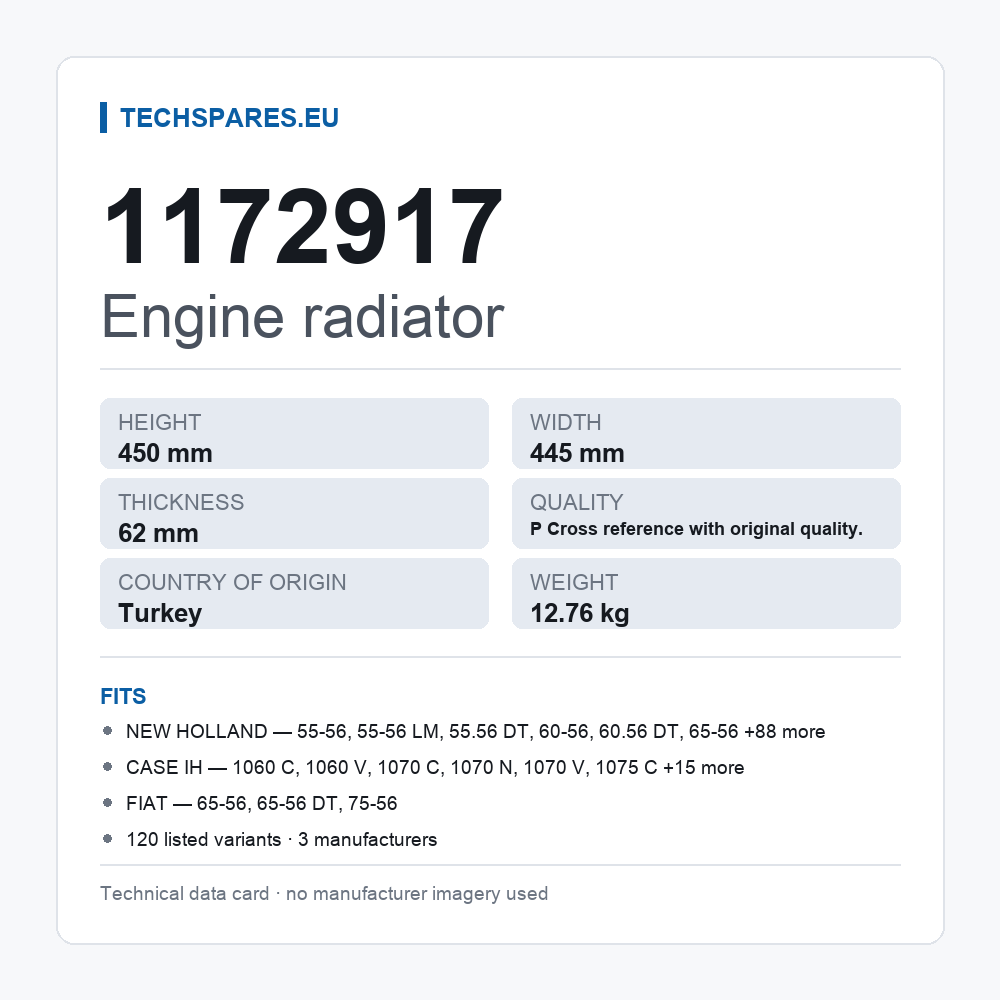

Technical specification
| Height | 450 mm |
|---|---|
| Width | 445 mm |
| Thickness | 62 mm |
| Material | Copper |
| Technology | cemented |
| Quality | P Cross reference with original quality. |
| Weight | 12.76 kg |
| Country of origin | Turkey |
| Supplementary Article/Supplementary Info 2 | with cover |
| Radiator type | Brazed cooling fins |
Vehicle and machine applications (120)
Fits equipment from 3 manufacturers: CASE IH, FIAT, NEW HOLLAND.
| Make | Model | Engine | Engine code | Years | kW | hp | ccm |
|---|---|---|---|---|---|---|---|
| CASE IH | JX | 1060 C | – | 2003/01 – 2008/12 | 43 | 59 | 2930 |
| CASE IH | JX | 1060 V | – | 2004/05 – n/a | 43 | 59 | 2930 |
| CASE IH | JX | 1070 C | – | 2003/01 – 2008/12 | 53 | 72 | 2930 |
| CASE IH | JX | 1070 N | – | 2004/05 – n/a | 53 | 72 | — |
| CASE IH | JX | 1070 V | – | 2004/05 – n/a | 53 | 72 | 2930 |
| CASE IH | JX | 1075 C | – | 2003/01 – 2008/12 | 56 | 76 | 2930 |
| CASE IH | JX | 1075 N | – | 2004/05 – 2009/12 | 56 | 76 | 2900 |
| CASE IH | JX | 1075 V | – | 2004/05 – n/a | 56 | 76 | 2930 |
| CASE IH | JX | 1095 N | – | 2004/12 – 2008/12 | 70 | 95 | 4485 |
| CASE IH | JX | 1095 V | – | 2004/12 – 2008/12 | 72 | 98 | 4485 |
| CASE IH | JX | 75 | – | 2002/11 – 2006/12 | 55 | 75 | 3600 |
| CASE IH | JX | 80 | – | 2004/01 – 2006/12 | 53 | 72 | 3900 |
| CASE IH | JX | 80 | F5C | 2008/12 – 2012/12 | 53 | 72 | 3900 |
| CASE IH | JX | 80 2WD | – | 2006/01 – 2008/12 | 59 | 80 | 3908 |
| CASE IH | JX | 80 4WD | – | 2006/01 – 2008/12 | 59 | 80 | 3908 |
| CASE IH | JX | 85 | – | 2002/11 – 2006/12 | 62 | 85 | 3900 |
| CASE IH | JX | 90 | – | 2004/01 – 2006/12 | 60 | 82 | 3900 |
| CASE IH | JX | 90 | F5C | 2008/01 – 2012/12 | 60 | 82 | 3900 |
| CASE IH | JX | 90 2WD | – | 2006/01 – 2008/12 | 66 | 90 | 3908 |
| CASE IH | JX | 90 4WD | – | 2006/01 – 2008/12 | 60 | 82 | 3908 |
| CASE IH | JX | 95 | – | 2002/11 – 2004/12 | 66 | 90 | 3900 |
| CASE IH | JX | 95 2WD | – | 2006/01 – 2008/12 | 69 | 94 | 3908 |
| CASE IH | JX | 95 4WD | – | 2006/01 – 2008/12 | 69 | 94 | 3908 |
| FIAT | 65-XX | 65-56 | – | n/a – n/a | — | — | — |
| FIAT | 65-XX | 65-56 DT | – | n/a – n/a | — | — | — |
| FIAT | 75-XX | 75-56 | – | n/a – n/a | — | — | — |
| NEW HOLLAND | TD | TD 80 | – | n/a – n/a | — | — | — |
| NEW HOLLAND | TD | TD 90 | – | n/a – n/a | — | — | — |
| NEW HOLLAND | TD | TD 95 | – | n/a – n/a | — | — | — |
| NEW HOLLAND | TD3 | TD3.50 | – | 2011/10 – n/a | 36 | 49 | 2216 |
| NEW HOLLAND | TD5 | TD5.65 | – | 2011/11 – n/a | 48 | 65 | 2930 |
| NEW HOLLAND | TD5 | TD5.75 2WD | – | 2011/11 – n/a | 56 | 76 | 3908 |
| NEW HOLLAND | TD5 | TD5.75 4WD | – | 2011/11 – n/a | 56 | 76 | 3908 |
| NEW HOLLAND | TD5 | TD5.80 2WD | – | 2011/11 – n/a | 60 | 82 | 2930 |
| NEW HOLLAND | TD5 | TD5.80 4WD | – | 2011/11 – n/a | 60 | 82 | 2930 |
| NEW HOLLAND | TD5 | TD5.85 | – | 2011/11 – n/a | 60 | 82 | 3200 |
| NEW HOLLAND | TD5 | TD5.90 2WD | – | 2011/11 – n/a | 65 | 88 | 3908 |
| NEW HOLLAND | TD5 | TD5.90 4WD | – | 2011/11 – n/a | 65 | 88 | 3908 |
| NEW HOLLAND | TD5 | TD5.95 | – | 2011/11 – n/a | 70 | 95 | 4485 |
| NEW HOLLAND | TK | TK 100 A | – | 2004/02 – n/a | 69 | 94 | 3908 |
| NEW HOLLAND | TK | TK 76 | – | 2000/01 – 2004/02 | — | — | — |
| NEW HOLLAND | TK | TK 76 M | – | 2000/01 – 2004/02 | — | — | — |
| NEW HOLLAND | TK | TK 80 A | – | 2004/02 – n/a | 59 | 80 | 3908 |
| NEW HOLLAND | TK | TK 80 MA | – | 2004/02 – n/a | 59 | 80 | 3908 |
| NEW HOLLAND | TK | TK 85 | – | 2000/01 – 2004/02 | — | — | — |
| NEW HOLLAND | TK | TK 85 M | – | 2000/01 – 2004/02 | — | — | — |
| NEW HOLLAND | TK | TK 90 A | – | 2004/02 – n/a | 65 | 89 | 3908 |
| NEW HOLLAND | TK | TK 90 MA | – | 2004/02 – n/a | 65 | 89 | 3908 |
| NEW HOLLAND | TN | TN 55 | – | 1999/09 – 2003/12 | 37 | 50 | 2930 |
| NEW HOLLAND | TN | TN 55 D | – | 1998/11 – 2003/12 | 37 | 50 | 2930 |
| NEW HOLLAND | TN | TN 55 S | – | 1998/11 – 2003/12 | 37 | 50 | 2930 |
| NEW HOLLAND | TN | TN 55 V | – | 2000/05 – 2004/05 | 37 | 50 | 2930 |
| NEW HOLLAND | TN | TN 60 A | – | 2003/12 – n/a | 43 | 59 | — |
| NEW HOLLAND | TN | TN 60 DA 2WD | – | 2004/01 – 2008/12 | 43 | 59 | 2930 |
| NEW HOLLAND | TN | TN 60 DA 4WD | – | 2004/01 – 2008/12 | 43 | 59 | 2930 |
| NEW HOLLAND | TN | TN 60 SA | – | 2004/01 – 2008/12 | 43 | 59 | 2930 |
| NEW HOLLAND | TN | TN 60 VA | – | 2004/05 – n/a | 43 | 59 | 2930 |
| NEW HOLLAND | TN | TN 65 | – | 1999/09 – 2003/12 | 42 | 57 | 2930 |
| NEW HOLLAND | TN | TN 65 D | – | 1998/11 – 2003/12 | 44 | 60 | 2930 |
| NEW HOLLAND | TN | TN 65 F | 8045.06 | 1999/01 – 2002/12 | 44 | 60 | 3613 |
| NEW HOLLAND | TN | TN 65 N | – | 2000/05 – 2004/05 | 44 | 60 | 2930 |
| NEW HOLLAND | TN | TN 65 S | – | 1998/11 – 2003/12 | 44 | 60 | 2930 |
| NEW HOLLAND | TN | TN 65 V | – | 1999/09 – 2004/05 | 44 | 60 | 2930 |
| NEW HOLLAND | TN | TN 70 | – | 1999/09 – 2003/12 | 51 | 69 | 2930 |
| NEW HOLLAND | TN | TN 70 A | – | 2003/12 – n/a | 53 | 72 | — |
| NEW HOLLAND | TN | TN 70 D | – | 1998/11 – 2003/12 | 53 | 72 | 2930 |
| NEW HOLLAND | TN | TN 70 DA 2WD | – | 2004/01 – 2008/12 | 53 | 72 | 2930 |
| NEW HOLLAND | TN | TN 70 DA 4WD | – | 2004/01 – 2008/12 | 53 | 72 | 2930 |
| NEW HOLLAND | TN | TN 70 F | – | 2001/10 – 2004/01 | 50 | 68 | — |
| NEW HOLLAND | TN | TN 70 NA | – | 2004/05 – n/a | 53 | 72 | 2930 |
| NEW HOLLAND | TN | TN 70 S | – | 1998/11 – 2003/12 | 53 | 72 | 2930 |
| NEW HOLLAND | TN | TN 70 SA | – | 2003/12 – n/a | 53 | 72 | 2930 |
| NEW HOLLAND | TN | TN 70 VA | – | 2004/05 – n/a | 53 | 72 | 2930 |
| NEW HOLLAND | TN | TN 75 | – | 1999/09 – 2003/12 | 55 | 75 | 2930 |
| NEW HOLLAND | TN | TN 75 A | – | 2003/12 – n/a | 56 | 76 | — |
| NEW HOLLAND | TN | TN 75 D | – | 1998/11 – 2003/12 | 53 | 72 | 2930 |
| NEW HOLLAND | TN | TN 75 DA 2WD | – | 2004/01 – 2008/12 | 56 | 76 | 2930 |
| NEW HOLLAND | TN | TN 75 DA 4WD | – | 2004/01 – 2008/12 | 56 | 76 | 2930 |
| NEW HOLLAND | TN | TN 75 F | – | 1997/09 – 2001/12 | 56 | 76 | 3900 |
| NEW HOLLAND | TN | TN 75 FA 2WD | 8045.05 | 2004/01 – n/a | 55 | 75 | 3908 |
| NEW HOLLAND | TN | TN 75 FA 4WD | 8045.05 | 2004/01 – n/a | 55 | 75 | 3908 |
| NEW HOLLAND | TN | TN 75 N | – | 2000/05 – 2004/05 | 51 | 70 | 2930 |
| NEW HOLLAND | TN | TN 75 NA | – | 2004/05 – n/a | 56 | 76 | 2930 |
| NEW HOLLAND | TN | TN 75 S | – | 1998/11 – 2003/12 | 53 | 72 | 2930 |
| NEW HOLLAND | TN | TN 75 SA | – | 2003/12 – n/a | 56 | 76 | 2930 |
| NEW HOLLAND | TN | TN 75 V | – | 2000/05 – 2004/05 | 51 | 70 | 2930 |
| NEW HOLLAND | TN | TN 75 VA | – | 2004/05 – n/a | 56 | 76 | 2930 |
| NEW HOLLAND | TN | TN 80 F | – | 2001/10 – 2004/01 | 56 | 76 | — |
| NEW HOLLAND | TN | TN 85 FA 2WD | – | 2004/01 – n/a | 62 | 84 | 3908 |
| NEW HOLLAND | TN | TN 85 FA 4WD | NEF4 (F4GE0404A) | 2004/01 – n/a | 62 | 84 | 3908 |
| NEW HOLLAND | TN | TN 90 F | – | 1997/09 – 2001/10 | 66 | 90 | 3908 |
| NEW HOLLAND | TN | TN 95 A | NEF4 (F4GE0454A) | 2005/10 – n/a | 66 | 90 | 4500 |
| NEW HOLLAND | TN | TN 95 DA 2WD | NEF4 (F4GE0454A) | 2004/01 – 2008/12 | 66 | 90 | 4500 |
| NEW HOLLAND | TN | TN 95 DA 4WD | – | 2004/01 – 2008/12 | 66 | 90 | 4500 |
| NEW HOLLAND | TN | TN 95 F | NEF4 (F4GE0454A) | 2001/10 – 2004/10 | 66 | 90 | — |
| NEW HOLLAND | TN | TN 95 FA 2WD | NEF4 (F4GE0454A) | 2004/01 – n/a | 68 | 92 | 3908 |
| NEW HOLLAND | TN | TN 95 FA 4WD | – | n/a – n/a | 68 | 92 | 3908 |
| NEW HOLLAND | TN | TN 95 NA | – | 2004/01 – n/a | 68 | 92 | — |
| NEW HOLLAND | TN | TN 95 VA | – | 2004/12 – n/a | 68 | 92 | 3908 |
| NEW HOLLAND | TT | TT 50 | – | 2009/03 – n/a | 35 | 48 | — |
| NEW HOLLAND | TT | TT 50 B | – | n/a – n/a | — | — | — |
| NEW HOLLAND | TT | TT 55 | – | 2009/03 – n/a | 40 | 55 | — |
| NEW HOLLAND | TT | TT 55 B | – | n/a – n/a | — | — | — |
| NEW HOLLAND | TT | TT 55 D | – | n/a – n/a | — | — | — |
| NEW HOLLAND | TT | TT 65 | – | 2009/03 – n/a | 48 | 65 | — |
| NEW HOLLAND | TT | TT 65 B | – | n/a – n/a | — | — | — |
| NEW HOLLAND | TT | TT 65 D | – | n/a – n/a | — | — | — |
| NEW HOLLAND | TT | TT 75 | – | 2009/03 – n/a | 55 | 75 | — |
| NEW HOLLAND | TT | TT 75 D | – | n/a – n/a | — | — | — |
| NEW HOLLAND | TT | TT 75 DT | – | n/a – n/a | — | — | — |
| NEW HOLLAND | XX.56 | 55-56 | – | 1989/01 – n/a | 40 | 55 | — |
| NEW HOLLAND | XX.56 | 55-56 LM | – | 1989/01 – n/a | 40 | 55 | — |
| NEW HOLLAND | XX.56 | 55.56 DT | – | 1989/01 – n/a | 40 | 55 | — |
| NEW HOLLAND | XX.56 | 60-56 | – | 1989/01 – n/a | — | — | — |
| NEW HOLLAND | XX.56 | 60.56 DT | – | 1989/01 – n/a | — | — | — |
| NEW HOLLAND | XX.56 | 65-56 | – | 1989/01 – n/a | — | — | — |
| NEW HOLLAND | XX.56 | 65.56 DT | – | 1989/01 – n/a | — | — | — |
| NEW HOLLAND | XX.56 | 70.56 | – | 1989/01 – n/a | — | — | — |
| NEW HOLLAND | XX.56 | 70.56 DT | – | 1989/01 – n/a | — | — | — |
| NEW HOLLAND | XX.56 | 75-56 S | – | n/a – n/a | — | — | — |
OEM part number equivalent (5)
This part is listed as the equivalent of the original numbers below. If your machine’s parts book shows any of these, this is the item you need.
| Number | Brand |
|---|---|
| 1172917 | NEW HOLLAND |
| 5172926 | NEW HOLLAND |
| 5172928 | NEW HOLLAND |
| 5172926 | CASE |
| 5172928 | CASE |
Shipping and warranty
We dispatch within 1–4 business days of payment. The exact dispatch date is shown at checkout. Prices include 21 % VAT; the price without VAT is shown next to it. Business customers from another EU country with a valid VAT number pay 0 % VAT at checkout. Consumers have the statutory two-year EU warranty; business customers have our 12-month warranty — see Returns and refunds.
