Description
Engine radiator 135691A3 is supplied in new condition. It is listed for 20 machine variants across 1 manufacturer. We ship from stock inside the EU — no import duty, no customs delay, no transatlantic wait.
Listed against original number 135691A3 (CASE) for identification and compatibility. This is not a CASE-branded product. It is a new part supplied in the producer’s original packaging — the producer is named in the Manufacturer & product safety section below, as Regulation (EU) 2023/988 requires.

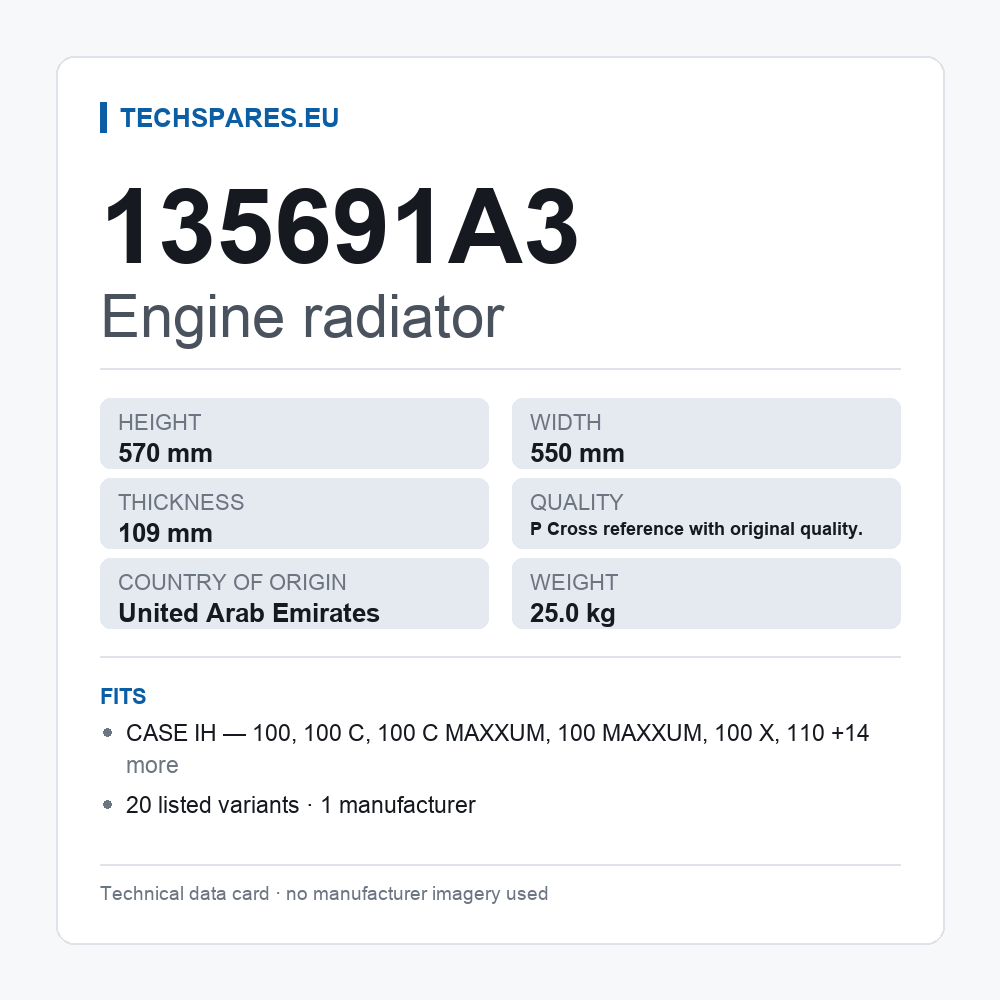

Technical specification
| Height | 570 mm |
|---|---|
| Width | 550 mm |
| Thickness | 109 mm |
| Frame | With frame |
| Material | Aluminium |
| Technology | cemented |
| Input diameter | 57 mm |
| Output diameter | 57 mm |
| Quality | P Cross reference with original quality. |
| Weight | 25.00 kg |
| Country of origin | United Arab Emirates |
| Cooling fins material | Aluminium |
| Water Tank Material (radiator) | Plastic |
| Radiator type | Brazed cooling fins |
| Supplementary Article/Supplementary Info 2 | with frame without cap |
Vehicle and machine applications (20)
Fits equipment from 1 manufacturer: CASE IH.
| Make | Model | Engine | Engine code | Years | kW | hp | ccm |
|---|---|---|---|---|---|---|---|
| CASE IH | MX | 100 | 6-359 | 1997/01 – 1999/12 | 74 | 101 | 5900 |
| CASE IH | MX | 100 C | 1004-40TW | 1998/01 – 1999/12 | 75 | 102 | 5900 |
| CASE IH | MX | 100 C MAXXUM | – | 1998/01 – 1999/12 | 75 | 102 | 5900 |
| CASE IH | MX | 100 MAXXUM | – | 1997/01 – 1999/12 | 74 | 101 | 5900 |
| CASE IH | MX | 100 X | – | 1997/01 – 1999/12 | 74 | 101 | 5900 |
| CASE IH | MX | 110 | 6-359 | 1997/01 – 1999/12 | 81 | 110 | 5900 |
| CASE IH | MX | 110 MAXXUM | 6-359 | 1997/01 – 1999/12 | 81 | 110 | 5900 |
| CASE IH | MX | 110 X | – | 1997/01 – 1999/12 | 81 | 110 | 5900 |
| CASE IH | MX | 120 | 6-359 | 1997/01 – 2002/12 | 88 | 120 | 5900 |
| CASE IH | MX | 120 MAXXUM | 6359D | 1997/01 – 2002/12 | 88 | 120 | 5900 |
| CASE IH | MX | 135 | 6-359 | 1997/01 – 1999/12 | 100 | 136 | 5900 |
| CASE IH | MX | 135 MAXXUM | – | 1997/01 – 1999/12 | 99 | 135 | 5900 |
| CASE IH | MX | 150 | – | 1998/01 – 2002/12 | 111 | 151 | 5900 |
| CASE IH | MX | 150 MAXXUM | – | 1998/01 – 1999/12 | 110 | 150 | 5900 |
| CASE IH | MX | 170 | – | 1998/01 – 2002/12 | 125 | 170 | 5900 |
| CASE IH | MX | 170 MAXXUM | – | 1998/01 – 1999/12 | 125 | 170 | 5900 |
| CASE IH | MXM | 120 2WD | – | 2002/01 – 2007/12 | 71 | 97 | 7472 |
| CASE IH | MXM | 120 4WD | – | 2002/01 – 2007/12 | 71 | 97 | 7472 |
| CASE IH | MXM | 130 2WD | – | 2002/01 – 2007/12 | 78 | 106 | 7472 |
| CASE IH | MXM | 130 4WD | – | 2002/01 – 2007/12 | 78 | 106 | 7472 |
OEM part number equivalent (4)
This part is listed as the equivalent of the original numbers below. If your machine’s parts book shows any of these, this is the item you need.
| Number | Brand |
|---|---|
| 135690A3 | CASE |
| 135690A3 | CASE |
| 135691A3 | CASE |
| 244295A1 | CASE |
