Engine radiator 3781114M1 — technical data card

Engine radiator 3781114M1

445,22 € incl. VAT · excl. VAT: 367,95 €

We dispatch within 1–4 business days of payment. The exact dispatch date is shown at checkout.

New engine radiator, part number 3781114M1. Fits 56 listed machine variants. Ships from EU stock.

Manufactured by HIGHWAY AUTOMOTIVE · see Manufacturer & product safety
Original equipment numbers (6): MASSEY FERGUSON 3781114M1, 3781116M1, 3808158M3, 3808159M2, 3808159M3, 3810188M92
OEM numbers are shown for identification only and do not imply the part is an original manufacturer part.

3 in stock — ready for dispatch

SKU: 3781114M1
Category:

Description

Engine radiator 3781114M1 is supplied in new condition. It is listed for 56 machine variants across 1 manufacturer. We ship from stock inside the EU — no import duty, no customs delay, no transatlantic wait.

Listed against original number 3781114M1 (MASSEY FERGUSON) for identification and compatibility. This is not a MASSEY FERGUSON-branded product. It is a new part supplied in the producer’s original packaging — the producer is named in the Manufacturer & product safety section below, as Regulation (EU) 2023/988 requires.

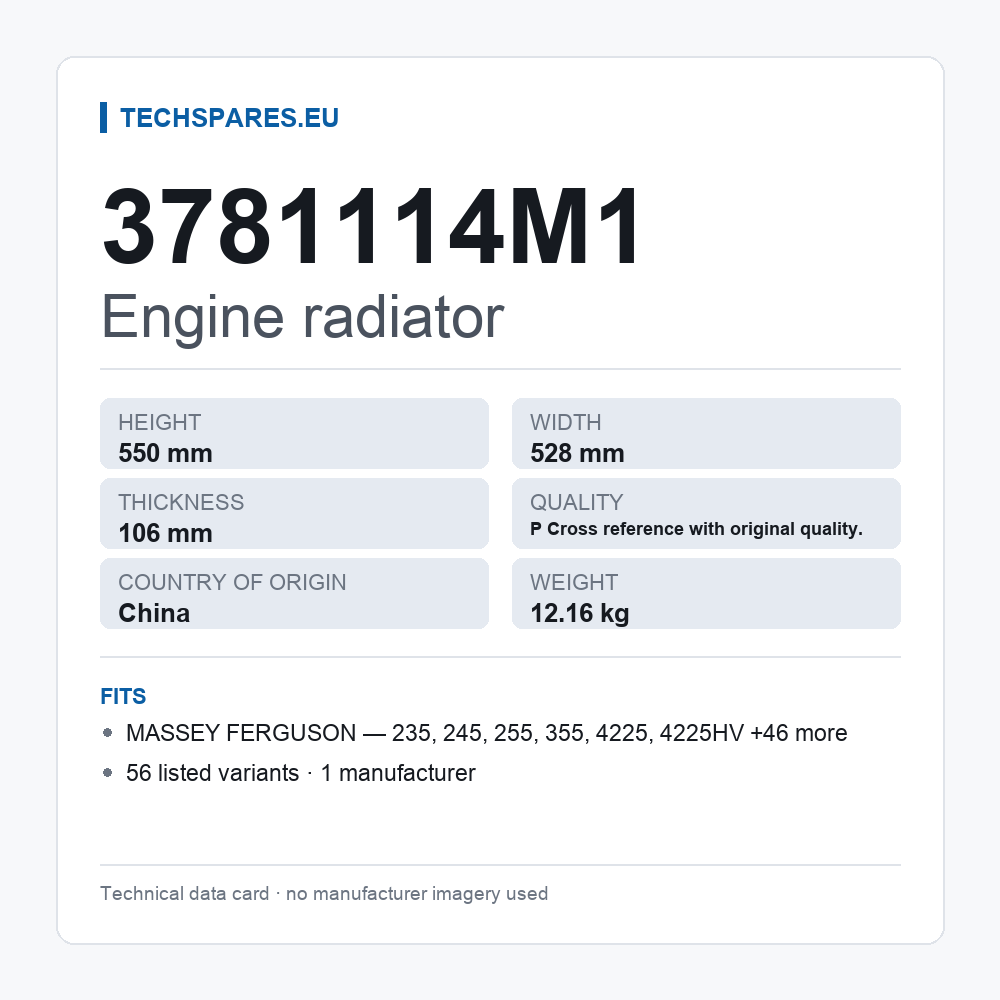

Technical specification

Height 550 mm
Width 528 mm
Thickness 106 mm
Frame Without frame
Material Aluminium
Technology cemented
Input diameter 11 mm/ · 50 mm
Output diameter 19 mm/ · 50 mm
Quality P Cross reference with original quality.
Weight 12.16 kg
Country of origin China
Cooling fins material Aluminium
Water Tank Material (radiator) Plastic
Radiator type Brazed cooling fins
Supplementary Article/Supplementary Info 2 without frame

Vehicle and machine applications (56)

Fits equipment from 1 manufacturer: MASSEY FERGUSON.

Make Model Engine Engine code Years kW hp ccm
MASSEY FERGUSON 200 235 AD3.152 1975/01 – 1987/12 28 38 2500
MASSEY FERGUSON 200 245 AD3.152 1976/01 – 1984/12 35 48 2500
MASSEY FERGUSON 200 255 AD3.152 1971/01 – 1991/12 35 48 2500
MASSEY FERGUSON 300 355 AT3.152, AT3.1524 1991/01 – 1997/12 40 55 2500
MASSEY FERGUSON 400 425 A4.236 2007/01 – 2012/12 48 65 3900
MASSEY FERGUSON 400 435 P4001 2003/01 – 2012/12 53 72 4100
MASSEY FERGUSON 400 445 P4001 2003/01 – 2012/12 66 90 4100
MASSEY FERGUSON 4000 4225 4.41 1997/01 – 2001/12 48 65 4070
MASSEY FERGUSON 4000 4225HV – n/a – n/a — — —
MASSEY FERGUSON 4000 4235 4.41 1997/01 – 2001/12 55 75 4070
MASSEY FERGUSON 4000 4235 (USA) – n/a – n/a — — —
MASSEY FERGUSON 4000 4235HV – n/a – n/a — — —
MASSEY FERGUSON 4000 4235HV (USA) – n/a – n/a — — —
MASSEY FERGUSON 4000 4240 4.41 1997/01 – 2001/12 60 82 4070
MASSEY FERGUSON 4000 4245 1004-4 1997/01 – 2001/12 62 85 4000
MASSEY FERGUSON 4000 4245HV – n/a – n/a — — —
MASSEY FERGUSON 4000 4255 1004-4 1997/01 – 2001/12 70 95 4000
MASSEY FERGUSON 4000 4255HV – n/a – n/a — — —
MASSEY FERGUSON 4000 4260 1006-6 1997/01 – 2001/12 74 100 5987
MASSEY FERGUSON 4000 4265 1004-4 1997/01 – 2001/12 64 87 4000
MASSEY FERGUSON 4000 4270 1006-6, 1006-6T 1997/01 – 2001/12 81 110 5987
MASSEY FERGUSON 4000 4325 1004-40, 1004-4 2001/01 – 2003/12 49 67 4000
MASSEY FERGUSON 4000 4325HV – n/a – n/a — — —
MASSEY FERGUSON 4000 4335 1004-4, 1004-42 2001/01 – 2003/12 57 78 4233
MASSEY FERGUSON 4000 4335HV – n/a – n/a — — —
MASSEY FERGUSON 4000 4345 1004-40T 2001/01 – 2003/12 66 90 4000
MASSEY FERGUSON 4000 4345HV – n/a – n/a — — —
MASSEY FERGUSON 4000 4355 1004-40T 2001/01 – 2003/12 74 100 4000
MASSEY FERGUSON 4000 4355HV – n/a – n/a — — —
MASSEY FERGUSON 4000 4360 1006-6, 1006-60 2001/01 – 2002/12 78 106 5987
MASSEY FERGUSON 4000 4365 1004-4 2002/01 – 2003/12 82 112 4000
MASSEY FERGUSON 4000 4370 1006-6T, 1006-60T 2001/01 – 2003/12 85 116 5987
MASSEY FERGUSON 500 555 – n/a – n/a — — —
MASSEY FERGUSON 5000 5335 P4001 2007/01 – 2012/12 55 75 4100
MASSEY FERGUSON 5000 5340 P4001 2007/01 – 2012/12 60 82 4100
MASSEY FERGUSON 5000 5355 P4001T 2007/01 – 2012/12 68 92 4100
MASSEY FERGUSON 5000 5360 1006-6 2007/01 – 2012/12 77 105 4100
MASSEY FERGUSON 5000 5425 1104D-44TA, 1104C-44 2003/01 – 2008/12 55 75 4400
MASSEY FERGUSON 5000 5435 1104D-44TA, 1104C-44 2006/01 – 2008/12 61 83 4400
MASSEY FERGUSON 5000 5445 1104D-E44TA, 1104C-44T 2003/01 – 2008/12 66 90 4400
MASSEY FERGUSON 5000 5445 1104D-E44TA 2008/01 – n/a 70 95 4399
MASSEY FERGUSON 6000 6235 1004-40T 1999/01 – 2003/12 58 79 4000
MASSEY FERGUSON 6000 6245 1004-40T 1999/01 – 2003/12 67 91 4000
MASSEY FERGUSON 6000 6265 1004-40T 1999/01 – 2003/12 84 114 4000
MASSEY FERGUSON 6000 6270 1006-60T 1999/01 – 2003/12 88 120 5987
MASSEY FERGUSON 6000 6280 1006-60T 1999/01 – 2003/12 97 132 5987
MASSEY FERGUSON 6000 6290 1006-60T 1999/01 – 2003/12 104 142 5987
MASSEY FERGUSON 6000 6445 (DYNA) 1104D-E44TA, 1104C-44T 2003/01 – 2008/12 66 90 4400
MASSEY FERGUSON 6000 6455 1104D-E44TA, 1104C-44T 2003/01 – 2008/12 74 100 4400
MASSEY FERGUSON 6000 6495 66 CTA (12V), 66 CTA (24V), 66 ETA 2003/01 – 2008/12 136 185 6600
MASSEY FERGUSON 7000 7485 66 CTA (12V) 2003/01 – 2008/12 121 165 6600
MASSEY FERGUSON 7000 7485 66 CTA (12V), 66 CTA (24V), 66 ETA 2003/01 – 2008/12 114 155 6600
MASSEY FERGUSON 7000 7490 66 CTA (12V) 2003/01 – 2008/12 129 175 6600
MASSEY FERGUSON 7000 7490 66 CTA (12V), 66 CTA (24V), 66 ETA 2003/01 – 2008/12 125 170 6600
MASSEY FERGUSON 7000 7495 66 CTA (12V) 2003/01 – 2008/12 140 190 6600
MASSEY FERGUSON 7000 7495 66 CTA (12V), 66 CTA (24V), 66 ETA 2003/01 – 2008/12 136 185 6600

OEM part number equivalent (6)

This part is listed as the equivalent of the original numbers below. If your machine’s parts book shows any of these, this is the item you need.

Number Brand
3781114M1 MASSEY FERGUSON
3781116M1 MASSEY FERGUSON
3808158M3 MASSEY FERGUSON
3808159M2 MASSEY FERGUSON
3808159M3 MASSEY FERGUSON
3810188M92 MASSEY FERGUSON

Shipping and warranty

We dispatch within 1–4 business days of payment. The exact dispatch date is shown at checkout. Prices include 21 % VAT; the price without VAT is shown next to it. Business customers from another EU country with a valid VAT number pay 0 % VAT at checkout. Consumers have the statutory two-year EU warranty; business customers have our 12-month warranty — see Returns and refunds.

Manufacturer

Highway Automotive Sp. z o.o.
Zakrzów 488, 32-003 Zakrzów, Poland
E-mail: office@highwayautomotive.eu

Product identification

Our part code: 3781114M1

Safety information

  • This part is intended for installation by a qualified technician following the machine manufacturer’s service instructions.
  • Before fitting, confirm that the part number matches your machine — the cross-reference table is in the product description.
  • Work only with the engine switched off and the battery disconnected; on hydraulic and pneumatic systems, depressurise the system first.
  • An incorrectly fitted part, or a part used for another purpose, can damage the machine or cause injury.
  • Store dry, in the original packaging, out of the reach of children.
