Description
Engine radiator 81829492 is supplied in new condition. It is listed for 57 machine variants across 2 manufacturers. We ship from stock inside the EU — no import duty, no customs delay, no transatlantic wait.
Listed against original number 81829492 (FORD) for identification and compatibility. This is not a FORD-branded product. It is a new part supplied in the producer’s original packaging — the producer is named in the Manufacturer & product safety section below, as Regulation (EU) 2023/988 requires.

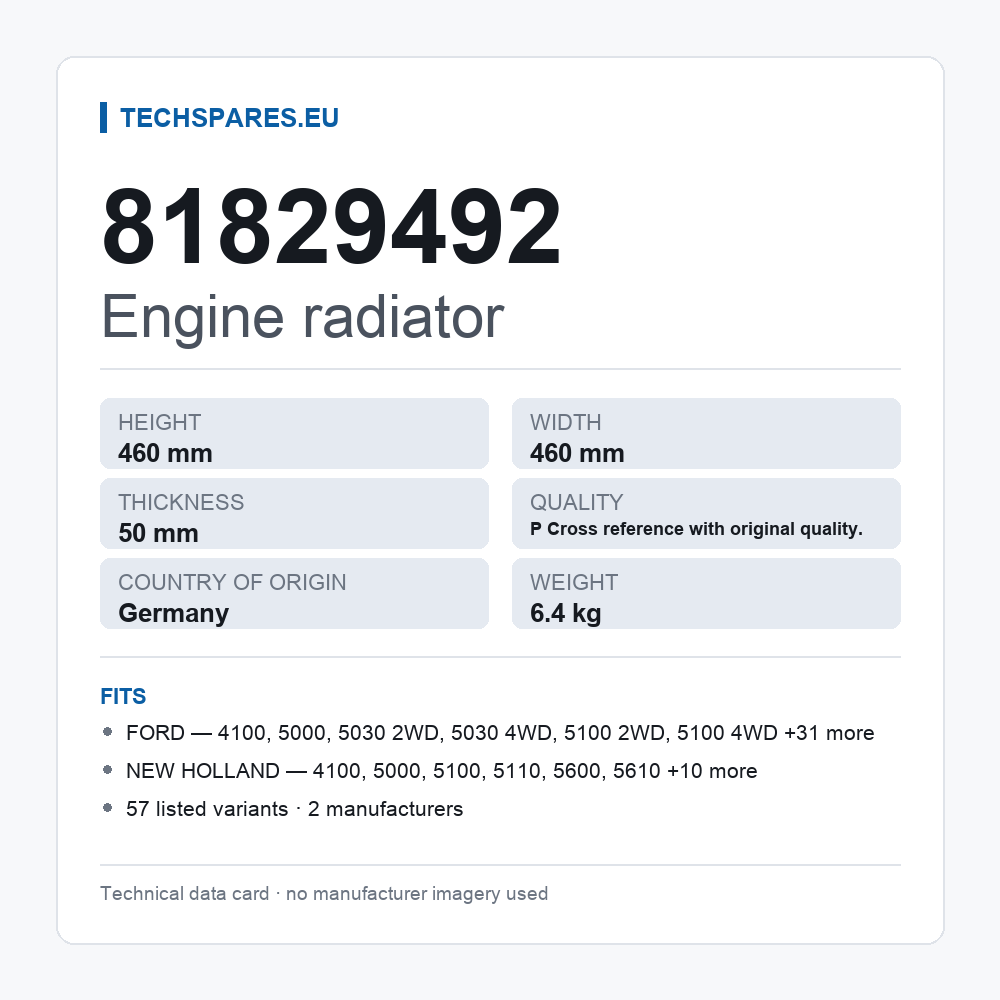

Technical specification
| Height | 460 mm |
|---|---|
| Width | 460 mm |
| Thickness | 50 mm |
| Material | Brass Copper |
| Technology | cemented |
| Input diameter | 38 mm |
| Output diameter | 45 mm |
| Quality | P Cross reference with original quality. |
| Weight | 6.40 kg |
| Country of origin | Germany |
| Radiator type | Brazed cooling fins |
| Water Tank Material (radiator) | Brass |
| Cooling fins material | Copper |
| Packaging length [cm] | 72 |
| Packaging width [cm] | 53 |
| Packaging height [cm] | 17 |
| Weight [kg] | 5.062 |
Vehicle and machine applications (57)
Fits equipment from 2 manufacturers: FORD, NEW HOLLAND.
| Make | Model | Engine | Engine code | Years | kW | hp | ccm |
|---|---|---|---|---|---|---|---|
| FORD | 4000 | 4100 | 183 DF | 1976/01 – 1981/12 | 40 | 54 | 2977 |
| FORD | 5000 | 5000 | A4.236 | 1964/01 – 1968/12 | 47 | 64 | 3819 |
| FORD | 5000 | 5000 | 256 DF | 1968/01 – 1975/12 | 54 | 74 | 4195 |
| FORD | 5000 | 5030 2WD | – | 1992/01 – 1999/12 | 47 | 64 | 4196 |
| FORD | 5000 | 5030 4WD | – | 1992/01 – 1999/12 | 47 | 64 | 4196 |
| FORD | 5000 | 5100 2WD | – | 1988/01 – 1991/12 | 48 | 65 | 4196 |
| FORD | 5000 | 5100 4WD | – | 1988/01 – 1991/12 | 48 | 65 | 4196 |
| FORD | 5000 | 5110 2WD | – | 1988/01 – 1991/12 | 48 | 65 | 4196 |
| FORD | 5000 | 5110 4WD | 256 DF | 1988/01 – 1991/12 | 48 | 65 | 4196 |
| FORD | 5000 | 5600 | 233 DF | 1975/01 – 1981/12 | 50 | 68 | 3814 |
| FORD | 5000 | 5610 2WD | 256 DF | 1988/01 – 1991/12 | 48 | 65 | 4196 |
| FORD | 5000 | 5610 4WD | 256 DF | 1981/01 – 1988/12 | 48 | 65 | 4195 |
| FORD | 5000 | 5900 | – | 1985/01 – 1993/12 | 54 | 73 | 4196 |
| FORD | 6000 | 6410 2WD | – | 1988/01 – 1991/12 | 59 | 80 | 4393 |
| FORD | 6000 | 6410 4WD | – | 1988/01 – 1991/12 | 59 | 80 | 4393 |
| FORD | 6000 | 6600 2WD | – | 1980/01 – 1981/12 | 58 | 79 | 4393 |
| FORD | 6000 | 6600 4WD | – | 1980/01 – 1981/12 | 58 | 79 | 4393 |
| FORD | 6000 | 6600 4WD | 256 DF | 1975/01 – 1980/12 | 56 | 76 | 4195 |
| FORD | 6000 | 6610 2WD | – | 1981/01 – 1985/12 | 60 | 82 | 4393 |
| FORD | 6000 | 6610 4WD | – | 1981/01 – 1985/12 | 60 | 82 | 4393 |
| FORD | 6000 | 6610 MARK II | – | 1985/01 – 1988/12 | 60 | 82 | 4393 |
| FORD | 6000 | 6610 O | – | n/a – n/a | — | — | — |
| FORD | 6000 | 6710 2WD | – | 1981/01 – 1985/12 | 60 | 82 | 4393 |
| FORD | 6000 | 6710 4WD | – | 1981/01 – 1985/12 | 60 | 82 | 4393 |
| FORD | 6000 | 6810 | – | 1988/01 – 1991/12 | 67 | 91 | 4413 |
| FORD | 7000 | 7410 | – | n/a – n/a | — | — | — |
| FORD | 7000 | 7600 | – | 1980/01 – 1981/12 | 68 | 92 | 4393 |
| FORD | 7000 | 7600 | 256 DF | 1975/01 – 1980/12 | 69 | 94 | 4196 |
| FORD | 7000 | 7610 | – | 1981/01 – 1985/12 | 72 | 98 | 4393 |
| FORD | 7000 | 7610 2WD | – | 1985/01 – 1988/12 | 72 | 98 | 4393 |
| FORD | 7000 | 7610 4WD | – | 1985/01 – 1988/12 | 72 | 98 | 4393 |
| FORD | 7000 | 7610 MARK III | – | 1988/01 – 1991/12 | 74 | 100 | 4393 |
| FORD | 7000 | 7610 O | – | n/a – n/a | — | — | — |
| FORD | 7000 | 7610 S | – | n/a – n/a | — | — | — |
| FORD | 7000 | 7700 2WD | – | 1980/01 – 1981/12 | 68 | 92 | 4393 |
| FORD | 7000 | 7700 2WD | 256 DF | 1976/01 – 1980/12 | 70 | 95 | 4196 |
| FORD | 7000 | 7700 4WD | – | 1980/01 – 1981/12 | 68 | 92 | 4393 |
| FORD | 7000 | 7710 | – | 1985/01 – 1988/12 | 65 | 88 | 4393 |
| FORD | 7000 | 7810 | – | n/a – n/a | — | — | — |
| FORD | 7000 | 7810 MARK II | – | 1988/01 – 1988/12 | 72 | 98 | 6572 |
| FORD | 7000 | 7810 MARK III | – | 1988/01 – 1991/12 | 74 | 100 | 6572 |
| NEW HOLLAND | 4000 | 4100 | – | 1975/01 – 1981/12 | — | — | — |
| NEW HOLLAND | 5000 | 5000 | – | 1965/01 – 1975/12 | — | — | — |
| NEW HOLLAND | 5000 | 5100 | – | 1965/01 – 1975/12 | — | — | — |
| NEW HOLLAND | 5000 | 5110 | – | 1984/01 – 1991/12 | — | — | — |
| NEW HOLLAND | 5000 | 5600 | – | 1975/01 – 1981/12 | — | — | — |
| NEW HOLLAND | 5000 | 5610 | – | 1981/01 – 1993/12 | — | — | — |
| NEW HOLLAND | 600 | 640 | – | 1973/01 – 1973/12 | — | — | — |
| NEW HOLLAND | 600 | 670 | – | n/a – n/a | — | — | — |
| NEW HOLLAND | 600 | 680 | – | 1975/01 – 1981/12 | — | — | — |
| NEW HOLLAND | 6000 | 6410 | – | 1988/01 – 1991/12 | — | — | — |
| NEW HOLLAND | 6000 | 6600 | – | 1975/01 – 1981/12 | — | — | — |
| NEW HOLLAND | 6000 | 6610 | – | 1981/01 – 1993/12 | — | — | — |
| NEW HOLLAND | 700 | 740 | – | n/a – n/a | — | — | — |
| NEW HOLLAND | 7000 | 7610 | – | 1981/01 – 1991/10 | — | — | — |
| NEW HOLLAND | 7000 | 7710 | – | 1981/01 – 1991/12 | — | — | — |
| NEW HOLLAND | 7000 | 7810 | – | 1988/02 – 1991/10 | — | — | — |
OEM part number equivalent (6)
This part is listed as the equivalent of the original numbers below. If your machine’s parts book shows any of these, this is the item you need.
| Number | Brand |
|---|---|
| 81829492 | FORD |
| 82980244 | FORD |
| 83993346 | FORD |
| 87687384 | FORD |
| 87712915 | FORD |
| E7NN8005BA | FORD |
Shipping and warranty
We dispatch within 1–4 business days of payment. The exact dispatch date is shown at checkout. Prices include 21 % VAT; the price without VAT is shown next to it. Business customers from another EU country with a valid VAT number pay 0 % VAT at checkout. Consumers have the statutory two-year EU warranty; business customers have our 12-month warranty — see Returns and refunds.
