Description
Engine radiator 82033792 is supplied in new condition. It is listed for 37 machine variants across 3 manufacturers. We ship from stock inside the EU — no import duty, no customs delay, no transatlantic wait.
Listed against original number 82033792 (NEW HOLLAND) for identification and compatibility. This is not a NEW HOLLAND-branded product. It is a new part supplied in the producer’s original packaging — the producer is named in the Manufacturer & product safety section below, as Regulation (EU) 2023/988 requires.

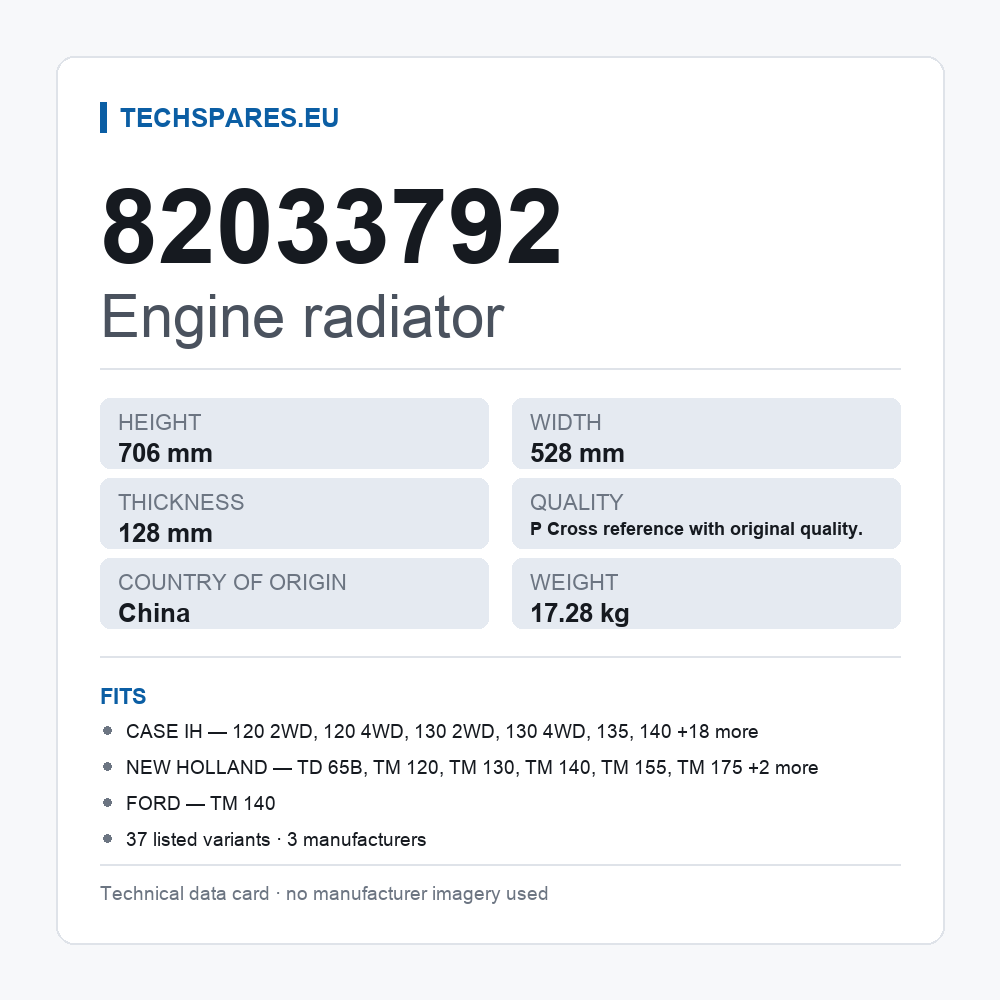

Technical specification
| Height | 706 mm |
|---|---|
| Width | 528 mm |
| Thickness | 128 mm |
| Frame | Without frame |
| Material | Aluminium |
| Technology | cemented |
| Input diameter | 10 mm/ · 50 mm |
| Output diameter | 16 mm/ · 50 mm |
| Quality | P Cross reference with original quality. |
| Weight | 17.28 kg |
| Country of origin | China |
| Cooling fins material | Aluminium |
| Water Tank Material (radiator) | Plastic |
| Radiator type | Brazed cooling fins |
| Supplementary Article/Supplementary Info 2 | without frame |
Vehicle and machine applications (37)
Fits equipment from 3 manufacturers: CASE IH, FORD, NEW HOLLAND.
| Make | Model | Engine | Engine code | Years | kW | hp | ccm |
|---|---|---|---|---|---|---|---|
| CASE IH | 500 | 523 | D-179 | 1965/01 – 1972/12 | 33 | 45 | 2933 |
| CASE IH | 500 | 523 A | D-179 | 1965/01 – 1972/12 | 33 | 45 | 2933 |
| CASE IH | 500 | 553 | D-179 | 1967/01 – 1978/12 | 38 | 52 | 2933 |
| CASE IH | 500 | 553 A | D-179 | 1972/01 – 1974/12 | 38 | 52 | 2933 |
| CASE IH | 600 | 624 | D-206 | 1965/01 – 1976/12 | 43 | 58 | 3382 |
| CASE IH | 600 | 624 A | D-206 | 1965/01 – 1972/12 | 43 | 58 | 3382 |
| CASE IH | 600 | 654 | D-206 | 1967/01 – 1976/12 | 44 | 60 | 3382 |
| CASE IH | 600 | 654 A | D-206 | 1972/01 – 1974/12 | 44 | 60 | 3382 |
| CASE IH | MAXXUM | 140 | NEF | 2007/01 – n/a | 103 | 140 | 6728 |
| CASE IH | MXM | 120 2WD | – | 2002/01 – 2007/12 | 71 | 97 | 7472 |
| CASE IH | MXM | 120 4WD | – | 2002/01 – 2007/12 | 71 | 97 | 7472 |
| CASE IH | MXM | 130 2WD | – | 2002/01 – 2007/12 | 78 | 106 | 7472 |
| CASE IH | MXM | 130 4WD | – | 2002/01 – 2007/12 | 78 | 106 | 7472 |
| CASE IH | MXM | 135 | – | 2002/06 – 2007/12 | 81 | 110 | 7472 |
| CASE IH | MXM | 140 2WD | – | 2002/01 – 2007/12 | 85 | 115 | 7472 |
| CASE IH | MXM | 140 4WD | – | 2002/01 – 2007/12 | 85 | 115 | 7472 |
| CASE IH | MXM | 150 | – | 2002/06 – 2007/12 | 88 | 120 | 7472 |
| CASE IH | MXM | 155 2WD | – | 2002/01 – 2007/12 | 92 | 125 | 7472 |
| CASE IH | MXM | 155 4WD | – | 2002/01 – 2007/12 | 92 | 125 | 7472 |
| CASE IH | MXM | 175 2WD | 675 TA/FB | 2002/01 – 2007/12 | 108 | 147 | 7472 |
| CASE IH | MXM | 175 4WD | 675 TA/FB | 2002/01 – 2007/12 | 108 | 147 | 7472 |
| CASE IH | MXM | 190 2WD | 675 TA/FA | 2002/01 – 2007/12 | 119 | 162 | 7472 |
| CASE IH | MXM | 190 4WD | 675 TA/FA | 2002/01 – 2007/12 | 119 | 162 | 7472 |
| CASE IH | PUMA | 140 | – | 2006/11 – 2012/12 | 104 | 141 | 6728 |
| CASE IH | PUMA | 155 | – | 2007/01 – 2012/12 | 114 | 155 | 6728 |
| FORD | TM | TM 140 | – | n/a – n/a | — | — | — |
| NEW HOLLAND | TD | TD 65B | – | 2006/01 – n/a | — | — | — |
| NEW HOLLAND | TM | TM 120 | 675 TA/M2, 675 TA/HD | 2002/01 – 2007/12 | 91 | 124 | 7480 |
| NEW HOLLAND | TM | TM 120 | 675 TA/HD | 2002/01 – 2007/12 | 82 | 111 | 7480 |
| NEW HOLLAND | TM | TM 130 | 675 TA/HC | 2002/01 – 2007/12 | 86 | 117 | 7480 |
| NEW HOLLAND | TM | TM 140 | 675 TA/HB, 675 TA/M2 | 2002/12 – 2007/12 | 106 | 144 | 748 |
| NEW HOLLAND | TM | TM 155 | 675 TA/HA | 2002/01 – 2007/02 | 103 | 140 | 7480 |
| NEW HOLLAND | TM | TM 155 | 675 TA/M2 | 2002/06 – n/a | 114 | 155 | — |
| NEW HOLLAND | TM | TM 175 | 675 TA/FB | 2003/01 – n/a | 130 | 177 | 7480 |
| NEW HOLLAND | TM | TM 175 | 675 TA/FA | 2002/01 – 2007/12 | 156 | 212 | 7485 |
| NEW HOLLAND | TM | TM 190 | 675 TA/FA | 2004/01 – n/a | 142 | 193 | 7480 |
| NEW HOLLAND | TT | TT 65 D | – | n/a – n/a | — | — | — |
OEM part number equivalent (10)
This part is listed as the equivalent of the original numbers below. If your machine’s parts book shows any of these, this is the item you need.
| Number | Brand |
|---|---|
| 82033525 | NEW HOLLAND |
| 82033792 | NEW HOLLAND |
| 82038688 | NEW HOLLAND |
| 87306754 | NEW HOLLAND |
| 87352193 | NEW HOLLAND |
| 82033525 | CASE |
| 82033792 | CASE |
| 82038688 | CASE |
| 87306754 | CASE |
| 87352193 | CASE |
