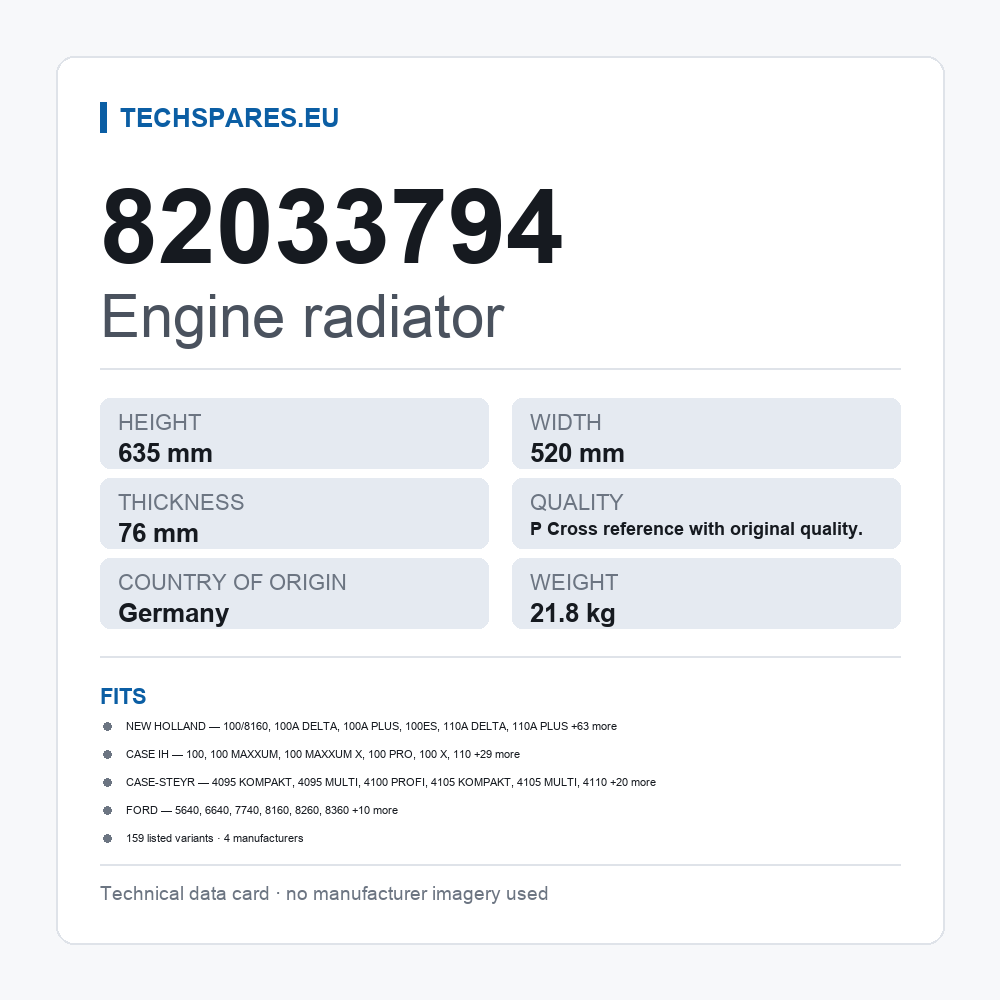

Engine radiator 82033794 — technical data card

Engine radiator 82033794

874,91 € incl. VAT · excl. VAT: 723,07 €

We dispatch within 1–4 business days of payment. The exact dispatch date is shown at checkout.

New engine radiator, part number 82033794. Fits 159 listed machine variants from 4 manufacturers. Ships from EU stock.

Manufactured by AKS DASIS · see Manufacturer & product safety
Original equipment numbers (2): CASE 82033772, 82033794
OEM numbers are shown for identification only and do not imply the part is an original manufacturer part.

1 in stock — ready for dispatch

SKU: 82033794
Category:

Description

Engine radiator 82033794 is supplied in new condition. It is listed for 159 machine variants across 4 manufacturers. We ship from stock inside the EU — no import duty, no customs delay, no transatlantic wait.

Listed against original number 82033794 (CASE) for identification and compatibility. This is not a CASE-branded product. It is a new part supplied in the producer’s original packaging — the producer is named in the Manufacturer & product safety section below, as Regulation (EU) 2023/988 requires.

Technical specification

Height 635 mm
Width 520 mm
Thickness 76 mm
Material Brass Copper
Technology cemented
Input diameter 50 mm
Output diameter 50 mm
Quality P Cross reference with original quality.
Weight 21.80 kg
Country of origin Germany
Radiator type Brazed cooling fins
Water Tank Material (radiator) Brass
Cooling fins material Copper
Packaging length [cm] 95
Packaging width [cm] 59
Packaging height [cm] 22
Weight [kg] 17.102

Vehicle and machine applications (159)

Fits equipment from 4 manufacturers: CASE IH, CASE-STEYR, FORD, NEW HOLLAND.

Grouped by manufacturer — click a group to expand. All listed variants are on this page.

NEW HOLLAND — 73 variants
Make Model Engine Engine code Years kW hp ccm
NEW HOLLAND 8000 8340 – 1991/11 – 1998/12 — — —
NEW HOLLAND 8000 8340 SL – 1991/11 – 1998/08 — — —
NEW HOLLAND 8000 8360 – 1990/04 – 1995/12 — — —
NEW HOLLAND 8000 8560 – n/a – n/a — — —
NEW HOLLAND M 100/8160 – 1996/01 – 1999/12 74 100 7485
NEW HOLLAND M 115/8260 – 1996/01 – 1999/12 85 116 7485
NEW HOLLAND M 135/8360 – 1996/01 – 1999/12 99 135 7485
NEW HOLLAND M 160/8560 – 1996/01 – 1999/12 118 160 7485
NEW HOLLAND T6-TIER 4A T6.120 2WD – 2012/10 – n/a 89 121 4485
NEW HOLLAND T6-TIER 4A T6.120 4WD – 2012/10 – n/a 89 121 4485
NEW HOLLAND T6-TIER 4A T6.125 – n/a – n/a — — —
NEW HOLLAND T6-TIER 4A T6.140 2WD – 2012/10 – n/a 105 143 4485
NEW HOLLAND T6-TIER 4A T6.140 4WD – 2012/10 – n/a 105 143 4485
NEW HOLLAND T6-TIER 4A T6.150 2WD – 2012/10 – n/a 113 154 4485
NEW HOLLAND T6-TIER 4A T6.150 4WD – 2012/10 – n/a 113 154 4485
NEW HOLLAND T6-TIER 4A T6.155 2WD – 2012/10 – n/a 113 154 6728
NEW HOLLAND T6-TIER 4A T6.155 4WD – 2012/10 – n/a 113 154 6728
NEW HOLLAND T6-TIER 4A T6.160 2WD – 2012/10 – n/a 120 163 4485
NEW HOLLAND T6-TIER 4A T6.160 4WD – 2012/10 – n/a 120 163 4485
NEW HOLLAND T6-TIER 4A T6.165 2WD – 2011/01 – n/a 121 165 6728
NEW HOLLAND T6-TIER 4A T6.165 4WD – 2012/10 – n/a 121 165 6728
NEW HOLLAND T6-TIER 4A T6.175 2WD – 2012/10 – n/a 129 175 6728
NEW HOLLAND T6-TIER 4A T6.175 4WD – 2012/10 – n/a 129 175 6728
NEW HOLLAND T6000 T6010 DELTA NEF4 (F4GE0454A) 2007/01 – n/a 74 101 4485
NEW HOLLAND T6000 T6010 PLUS NEF4 (F4GE0454A) 2007/01 – n/a 74 101 4485
NEW HOLLAND T6000 T6020 – n/a – n/a 82 112 4485
NEW HOLLAND T6000 T6020 DELTA NEF4 2007/01 – n/a 82 112 4485
NEW HOLLAND T6000 T6020 ELITE NEF4 2007/01 – n/a 82 112 4485
NEW HOLLAND T6000 T6020 PLUS NEF4 2007/01 – n/a 82 112 4485
NEW HOLLAND T6000 T6030 DELTA NEF6 (F4GE0604A) 2007/01 – n/a 86 117 6728
NEW HOLLAND T6000 T6030 PLUS NEF6 (F4GE0604A) 2007/01 – n/a 86 117 6728
NEW HOLLAND T6000 T6040 ELITE – 2007/01 – n/a 89 121 4485
NEW HOLLAND T6000 T6050 DELTA NEF6 (F4GE0684C) 2007/01 – n/a 93 126 6728
NEW HOLLAND T6000 T6050 ELITE NEF6 (F4GE0684C) 2007/01 – n/a 93 127 6728
NEW HOLLAND T6000 T6050 PLUS NEF6 (F4GE0684C) 2007/01 – n/a 93 127 6728
NEW HOLLAND T6000 T6060 – n/a – n/a — — —
NEW HOLLAND T6000 T6060 ELITE F4GE0684C, NEF4 (F4GE0484C) 2007/01 – n/a 96 130 6728
NEW HOLLAND T6000 T6070 PLUS F4GE0684C 2007/01 – n/a 104 141 6728
NEW HOLLAND TM TM 115 675 TA/M2 1999/01 – 2002/12 85 116 7485
NEW HOLLAND TM TM 115 – 2001/01 – n/a 88 120 7480
NEW HOLLAND TM TM 120 675 TA/M2, 675 TA/HD 2002/01 – 2007/12 91 124 7480
NEW HOLLAND TM TM 120 675 TA/HD 2002/01 – 2007/12 82 111 7480
NEW HOLLAND TM TM 125 675 TA/M2 1999/01 – 2002/12 93 126 7485
NEW HOLLAND TM TM 130 675 TA/HC 2002/01 – 2007/12 86 117 7480
NEW HOLLAND TM TM 140 675 TA/HB, 675 TA/M2 2002/12 – 2007/12 106 144 748
NEW HOLLAND TM TM 150 675 TA/HA 2002/01 – 2007/02 110 149 7480
NEW HOLLAND TM TM 150 675 TA/HA, 675 TA/M2 1999/01 – 2002/12 108 147 7485
NEW HOLLAND TM TM 165 675 TA/M2 1999/01 – 2002/12 123 168 7485
NEW HOLLAND TM TM 165 – 2001/10 – 2007/12 119 162 7480
NEW HOLLAND TM TM 180 675 TA/FB 2005/01 – 2007/12 130 177 7480
NEW HOLLAND TS 100A DELTA NEF4 (F4GE0454A) 2005/01 – 2007/12 74 101 4485
NEW HOLLAND TS 100A PLUS NEF4 (F4GE0454A) 2003/01 – 2005/12 74 101 4485
NEW HOLLAND TS 100ES 450T/PF 1999/10 – 2003/12 73 99 4987
NEW HOLLAND TS 110A DELTA NEF4 2005/01 – 2007/12 82 112 4485
NEW HOLLAND TS 110A PLUS NEF4 (F4GE0454A) 2003/05 – 2005/12 90 122 4485
NEW HOLLAND TS 110ES – 1999/10 – 2003/12 79 107 4987
NEW HOLLAND TS 115A DELTA NEF6 (F4GE0604A) 2005/01 – 2007/12 85 116 6228
NEW HOLLAND TS 115A PLUS NEF6 (F4GE0604A) 2003/01 – 2005/12 85 116 6728
NEW HOLLAND TS 125A PLUS NEF6 (F4GE0684C), NEF4 (F4GE0454A) 2003/01 – 2005/12 98 133 6728
NEW HOLLAND TS 135A DELTA – n/a – n/a — — —
NEW HOLLAND TS 135A PLUS NEF6 (F4GE0684C) 2003/01 – 2005/12 106 144 6728
NEW HOLLAND TS 6.120 – n/a – n/a — — —
NEW HOLLAND TS 6.140 – n/a – n/a — — —
NEW HOLLAND TS 90DC 450T/PF 1999/12 – 2003/12 66 90 4987
NEW HOLLAND TSA TS100A 2WD – 2003/10 – 2006/12 75 102 4474
NEW HOLLAND TSA TS100A 4WD – 2003/10 – 2006/12 75 102 4474
NEW HOLLAND TSA TS110A – 2003/12 – n/a 85 116 4485
NEW HOLLAND TSA TS115A 2WD NEF6 (F4GE0604A) 2003/10 – 2006/12 86 117 6720
NEW HOLLAND TSA TS115A 4WD – 2003/10 – 2006/12 — 117 6720
NEW HOLLAND TSA TS125A 2WD – 2003/10 – 2006/12 93 126 6720
NEW HOLLAND TSA TS125A 4WD – 2003/10 – 2006/12 93 126 6720
NEW HOLLAND TSA TS135A 2WD – 2003/10 – 2006/12 100 136 6720
NEW HOLLAND TSA TS135A 4WD – 2003/10 – 2006/12 100 136 6720
CASE IH — 41 variants
Make Model Engine Engine code Years kW hp ccm
CASE IH 5000 MAXXUM 5110 A 4-390 1988/01 – n/a 59 80 3922
CASE IH 5000 MAXXUM 5120 A 4TA-390 1990/01 – 1997/12 66 90 3922
CASE IH 5000 MAXXUM 5130 A 6-590 1990/01 – 1997/12 74 100 5883
CASE IH 5000 MAXXUM 5140 A 6T-590 1990/01 – 1997/12 81 110 5883
CASE IH 5000 MAXXUM 5150 A 6T-590 1992/01 – 1997/12 92 125 5883
CASE IH MAXXUM 100 NEF 2007/01 – n/a 74 101 —
CASE IH MAXXUM 110 NEF 2007/01 – n/a 81 110 4485
CASE IH MAXXUM 115 NEF 2007/01 – 2012/03 85 116 6728
CASE IH MAXXUM 120 NEF 2007/01 – 2012/12 89 121 4485
CASE IH MAXXUM 125 – 2007/01 – 2012/01 85 116 6728
CASE IH MAXXUM 125 NEF 2007/01 – 2012/12 93 126 —
CASE IH MAXXUM 130 NEF 2007/01 – n/a 96 131 4485
CASE IH MAXXUM 135 NEF 2007/01 – n/a 105 143 —
CASE IH MAXXUM 140 NEF 2007/01 – n/a 103 140 6728
CASE IH MXM 120 2WD – 2002/01 – 2007/12 71 97 7472
CASE IH MXM 120 4WD – 2002/01 – 2007/12 71 97 7472
CASE IH MXM 130 2WD – 2002/01 – 2007/12 78 106 7472
CASE IH MXM 130 4WD – 2002/01 – 2007/12 78 106 7472
CASE IH MXM 140 2WD – 2002/01 – 2007/12 85 115 7472
CASE IH MXM 140 4WD – 2002/01 – 2007/12 85 115 7472
CASE IH MXM 155 2WD – 2002/01 – 2007/12 92 125 7472
CASE IH MXM 155 4WD – 2002/01 – 2007/12 92 125 7472
CASE IH MXM 175 2WD 675 TA/FB 2002/01 – 2007/12 108 147 7472
CASE IH MXM 175 4WD 675 TA/FB 2002/01 – 2007/12 108 147 7472
CASE IH MXM 190 2WD 675 TA/FA 2002/01 – 2007/12 119 162 7472
CASE IH MXM 190 4WD 675 TA/FA 2002/01 – 2007/12 119 162 7472
CASE IH MXU 100 – 2003/07 – 2005/12 74 101 4485
CASE IH MXU 100 MAXXUM – 2005/07 – 2006/12 74 101 4485
CASE IH MXU 100 MAXXUM X – 2003/01 – 2006/12 74 100 4485
CASE IH MXU 100 PRO – 2006/05 – 2009/12 74 101 4485
CASE IH MXU 100 X – n/a – n/a — — —
CASE IH MXU 110 – 2003/07 – 2006/12 85 115 4485
CASE IH MXU 110 MAXXUM – 2003/07 – 2006/12 82 112 4485
CASE IH MXU 110 MAXXUM X – 2003/07 – 2006/12 81 110 4485
CASE IH MXU 110 PRO – 2006/05 – 2009/12 85 116 4485
CASE IH MXU 115 – 2003/07 – 2006/12 85 115 6728
CASE IH MXU 115 MAXXUM – 2003/07 – 2006/12 85 115 6728
CASE IH MXU 125 – 2003/07 – 2006/12 92 125 6728
CASE IH MXU 125 MAXXUM – 2003/07 – 2006/12 92 125 6728
CASE IH MXU 135 – 2003/07 – 2006/12 99 135 6728
CASE IH MXU 135 PRO – 2006/05 – 2006/12 100 136 6728
CASE-STEYR — 29 variants
Make Model Engine Engine code Years kW hp ccm
CASE-STEYR 4000 4095 KOMPAKT – 2011/06 – n/a 74 101 3400
CASE-STEYR 4000 4095 MULTI – 2012/10 – n/a 74 100 3400
CASE-STEYR 4000 4100 PROFI – 2003/01 – 2007/12 74 101 4485
CASE-STEYR 4000 4105 KOMPAKT – 2011/06 – n/a 77 105 3400
CASE-STEYR 4000 4105 MULTI – 2012/10 – n/a 77 105 3400
CASE-STEYR 4000 4110 – 2007/01 – n/a 82 112 —
CASE-STEYR 4000 4115 KOMPAKT – 2011/06 – n/a 84 114 3400
CASE-STEYR 4000 4115 MULTI – 2012/10 – n/a 84 114 3400
CASE-STEYR 4000 4115 PROFI – 2003/01 – 2007/12 85 116 4485
CASE-STEYR 4000 4120 – 2007/01 – n/a 89 121 —
CASE-STEYR 4000 4120 PROFI – 2007/01 – 2009/12 89 121 4485
CASE-STEYR 4000 4130 – 2007/01 – n/a 97 132 —
CASE-STEYR 4000 4130 PROFI – 2007/01 – 2009/12 104 141 6728
CASE-STEYR 6000 6115 F4CE0684C 2007/01 – n/a 86 117 —
CASE-STEYR 6000 6115 PROFI – 2003/01 – 2009/12 85 116 6728
CASE-STEYR 6000 6125 PROFI – 2003/01 – 2009/12 93 126 6728
CASE-STEYR 6000 6135 PROFI – 2003/01 – 2007/12 100 136 6728
CASE-STEYR 6000 6140 PROFI – 2007/01 – 2009/12 104 141 6728
CASE-STEYR PROFI 4110 – 2009/01 – n/a 105 143 4400
CASE-STEYR PROFI 4110 CLASSIC – 2009/11 – n/a 105 143 4485
CASE-STEYR PROFI 4110 CVT – 2009/11 – n/a 105 143 4485
CASE-STEYR PROFI 4120 – 2009/11 – n/a 113 154 4485
CASE-STEYR PROFI 4120 CVT – 2009/11 – n/a 113 154 4485
CASE-STEYR PROFI 4130 CLASSIC – 2009/11 – n/a 120 163 4485
CASE-STEYR PROFI 4130 CVT – 2009/11 – n/a 113 154 4485
CASE-STEYR PROFI 6115 – n/a – n/a — — —
CASE-STEYR PROFI 6125 – 2009/11 – n/a 121 165 6728
CASE-STEYR PROFI 6135 – n/a – n/a — — —
CASE-STEYR PROFI 6140 CLASSIC – 2009/11 – n/a 129 175 6728
FORD — 16 variants
Make Model Engine Engine code Years kW hp ccm
FORD 5000 5640 – 1992/01 – 1997/12 55 75 4393
FORD 6000 6640 – 1992/01 – 1997/12 62 85 4987
FORD 7000 7740 – 1992/01 – 1997/12 70 95 4987
FORD 8000 8160 – n/a – n/a — — —
FORD 8000 8260 – n/a – n/a — — —
FORD 8000 8360 – n/a – n/a — — —
FORD 8000 8560 – n/a – n/a — — —
FORD TM TM 110 – n/a – n/a — — —
FORD TM TM 115 – n/a – n/a — — —
FORD TM TM 120 – n/a – n/a — — —
FORD TM TM 125 – n/a – n/a — — —
FORD TM TM 130 – n/a – n/a — — —
FORD TM TM 140 – n/a – n/a — — —
FORD TM TM 150 – n/a – n/a — — —
FORD TM TM 165 – n/a – n/a — — —
FORD TM TM 180 – n/a – n/a — — —

OEM part number equivalent (2)

This part is listed as the equivalent of the original numbers below. If your machine’s parts book shows any of these, this is the item you need.

Number Brand
82033772 CASE
82033794 CASE

Shipping and warranty

We dispatch within 1–4 business days of payment. The exact dispatch date is shown at checkout. Prices include 21 % VAT; the price without VAT is shown next to it. Business customers from another EU country with a valid VAT number pay 0 % VAT at checkout. Consumers have the statutory two-year EU warranty; business customers have our 12-month warranty — see Returns and refunds.

Manufacturer

AKS Dasis Dommermuth GmbH & Co. KG
Auf dem Hahnenberg 14, 56218 Mülheim-Kärlich, Germany
E-mail: info@dasis.de

Product identification

Our part code: 82033794

Safety information

  • This part is intended for installation by a qualified technician following the machine manufacturer’s service instructions.
  • Before fitting, confirm that the part number matches your machine — the cross-reference table is in the product description.
  • Work only with the engine switched off and the battery disconnected; on hydraulic and pneumatic systems, depressurise the system first.
  • An incorrectly fitted part, or a part used for another purpose, can damage the machine or cause injury.
  • Store dry, in the original packaging, out of the reach of children.

Data taken from the manufacturer’s own official page: https://en.dasis.de/legal-notice (checked 2026-08-26)
