Description
Engine radiator 83673C3 is supplied in new condition. It is listed for 42 machine variants across 1 manufacturer. We ship from stock inside the EU — no import duty, no customs delay, no transatlantic wait.
Listed against original number 83673C3 (CASE) for identification and compatibility. This is not a CASE-branded product. It is a new part supplied in the producer’s original packaging — the producer is named in the Manufacturer & product safety section below, as Regulation (EU) 2023/988 requires.

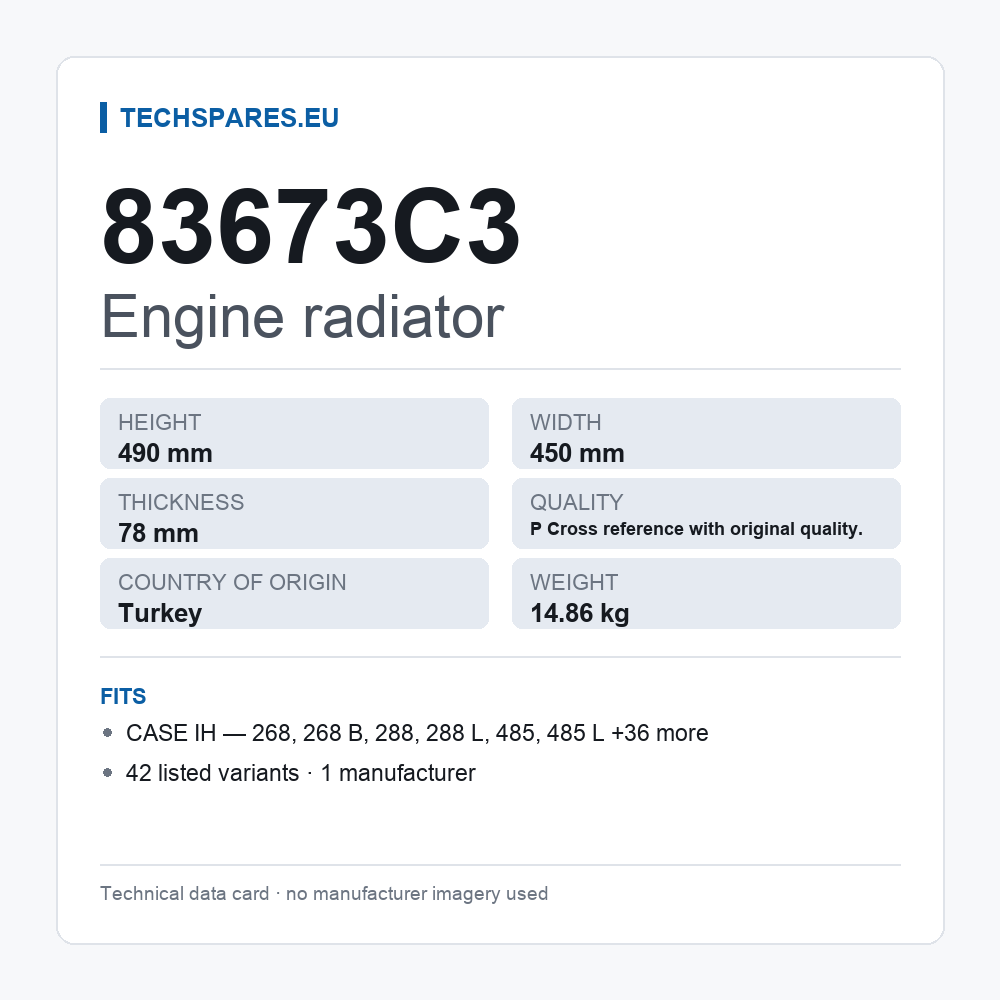

Technical specification
| Height | 490 mm |
|---|---|
| Width | 450 mm |
| Thickness | 78 mm |
| Material | Copper |
| Technology | cemented |
| Input diameter | 45 mm |
| Output diameter | 58 mm |
| Quality | P Cross reference with original quality. |
| Weight | 14.86 kg |
| Country of origin | Turkey |
| Cooling fins material | Copper |
| Water Tank Material (radiator) | Brass |
| Radiator type | Brazed cooling fins |
Vehicle and machine applications (42)
Fits equipment from 1 manufacturer: CASE IH.
| Make | Model | Engine | Engine code | Years | kW | hp | ccm |
|---|---|---|---|---|---|---|---|
| CASE IH | 200 | 268 | D-239 | n/a – n/a | — | — | — |
| CASE IH | 200 | 268 B | D-239 | n/a – n/a | — | — | — |
| CASE IH | 200 | 288 | D-268 | n/a – n/a | — | — | — |
| CASE IH | 200 | 288 L | D-268 | n/a – n/a | — | — | — |
| CASE IH | 400 | 485 | D-179, D-239 | 1970/01 – 1990/12 | 38 | 52 | 2934 |
| CASE IH | 400 | 485 L | D-179, D-239 | 1981/01 – 1990/12 | 38 | 52 | 2934 |
| CASE IH | 400 | 485 XL | D-179, D-239 | 1981/01 – 1990/12 | 38 | 52 | 2934 |
| CASE IH | 400 | 495 | D-239 | 1990/01 – 1994/12 | 39 | 53 | 2934 |
| CASE IH | 400 | 495 XL | D-239 | 1990/01 – 1994/12 | 38 | 52 | 2934 |
| CASE IH | 500 | 585 | D-206 | 1981/01 – 1990/12 | 44 | 60 | 3376 |
| CASE IH | 500 | 585 C | G-188D | n/a – n/a | — | — | — |
| CASE IH | 500 | 585 D | G-188D | n/a – n/a | — | — | — |
| CASE IH | 500 | 585 XL | D-206 | 1981/01 – 1990/12 | 44 | 60 | 3376 |
| CASE IH | 500 | 585 XLA | D-206 | 1981/01 – 1990/12 | 44 | 60 | 3376 |
| CASE IH | 500 | 595 | D-206 | 1990/01 – 1994/12 | 38 | 52 | 3400 |
| CASE IH | 500 | 595 XL | D-206 | 1990/01 – 1994/12 | 44 | 60 | 3382 |
| CASE IH | 600 | 685 | D-239 | 1981/01 – 1990/12 | 54 | 73 | 3915 |
| CASE IH | 600 | 685 L | D-239 | 1981/01 – 1990/12 | 54 | 73 | 3915 |
| CASE IH | 600 | 685 XL | D-239 | 1981/01 – 1990/12 | 51 | 69 | 3915 |
| CASE IH | 600 | 685 XLA | D-239 | 1981/01 – 1990/12 | 54 | 73 | 3915 |
| CASE IH | 600 | 695 | D-239 | 1990/01 – 1994/12 | 54 | 73 | 3915 |
| CASE IH | 600 | 695 L | D-239 | n/a – n/a | — | — | — |
| CASE IH | 600 | 695 SM | – | n/a – n/a | — | — | — |
| CASE IH | 600 | 695 SR | – | n/a – n/a | — | — | — |
| CASE IH | 600 | 695 XL | D-239 | 1990/01 – 1994/12 | 51 | 69 | 3915 |
| CASE IH | 700 | 785 | D-246 | 1981/01 – 1990/12 | 57 | 77 | 4032 |
| CASE IH | 700 | 785 L | D-246 | 1981/01 – 1990/12 | 57 | 77 | 4032 |
| CASE IH | 700 | 785 XL | D-246 | 1981/01 – 1990/12 | 57 | 77 | 4032 |
| CASE IH | 700 | 795 | D-246 | 1990/01 – 1994/12 | 57 | 77 | 4037 |
| CASE IH | 700 | 795 L | D-246 | 1990/01 – 1994/12 | 57 | 77 | 4037 |
| CASE IH | 700 | 795 XL | D-246 | 1990/01 – 1994/12 | 57 | 77 | 4037 |
| CASE IH | 800 | 885 | D-268 | 1960/01 – 1990/12 | 58 | 79 | 4400 |
| CASE IH | 800 | 885 G | – | 1960/01 – 1990/12 | 58 | 79 | 4400 |
| CASE IH | 800 | 885 L | D-268 | 1960/01 – 1990/12 | 58 | 79 | 4400 |
| CASE IH | 800 | 885 N | D-268 | 1960/01 – 1990/12 | 58 | 79 | 4400 |
| CASE IH | 800 | 885 XL | D-268 | 1960/01 – 1990/12 | 61 | 83 | 4400 |
| CASE IH | 800 | 885 XLA | D-268 | 1960/01 – 1990/12 | 58 | 79 | 4400 |
| CASE IH | 800 | 895 | D-268 | 1990/01 – 1994/12 | 61 | 83 | 4392 |
| CASE IH | 800 | 895 XL | D-268 | 1990/01 – 1994/12 | 61 | 83 | 4392 |
| CASE IH | 900 | 995 | D-268 | 1971/01 – 1994/12 | 66 | 90 | 4392 |
| CASE IH | 900 | 995 L | D-268 | 1971/01 – 1994/12 | 66 | 90 | 4392 |
| CASE IH | 900 | 995 XL | D-268T | 1971/01 – 1994/12 | 66 | 90 | 4392 |
OEM part number equivalent (7)
This part is listed as the equivalent of the original numbers below. If your machine’s parts book shows any of these, this is the item you need.
| Number | Brand |
|---|---|
| 83673C3 | CASE |
| 84673C1 | CASE |
| 84673C2 | CASE |
| 84673C3 | CASE |
| 84673C4 | CASE |
| 84673C5 | CASE |
| 84673C6 | CASE |
Shipping and warranty
We dispatch within 1–4 business days of payment. The exact dispatch date is shown at checkout. Prices include 21 % VAT; the price without VAT is shown next to it. Business customers from another EU country with a valid VAT number pay 0 % VAT at checkout. Consumers have the statutory two-year EU warranty; business customers have our 12-month warranty — see Returns and refunds.
