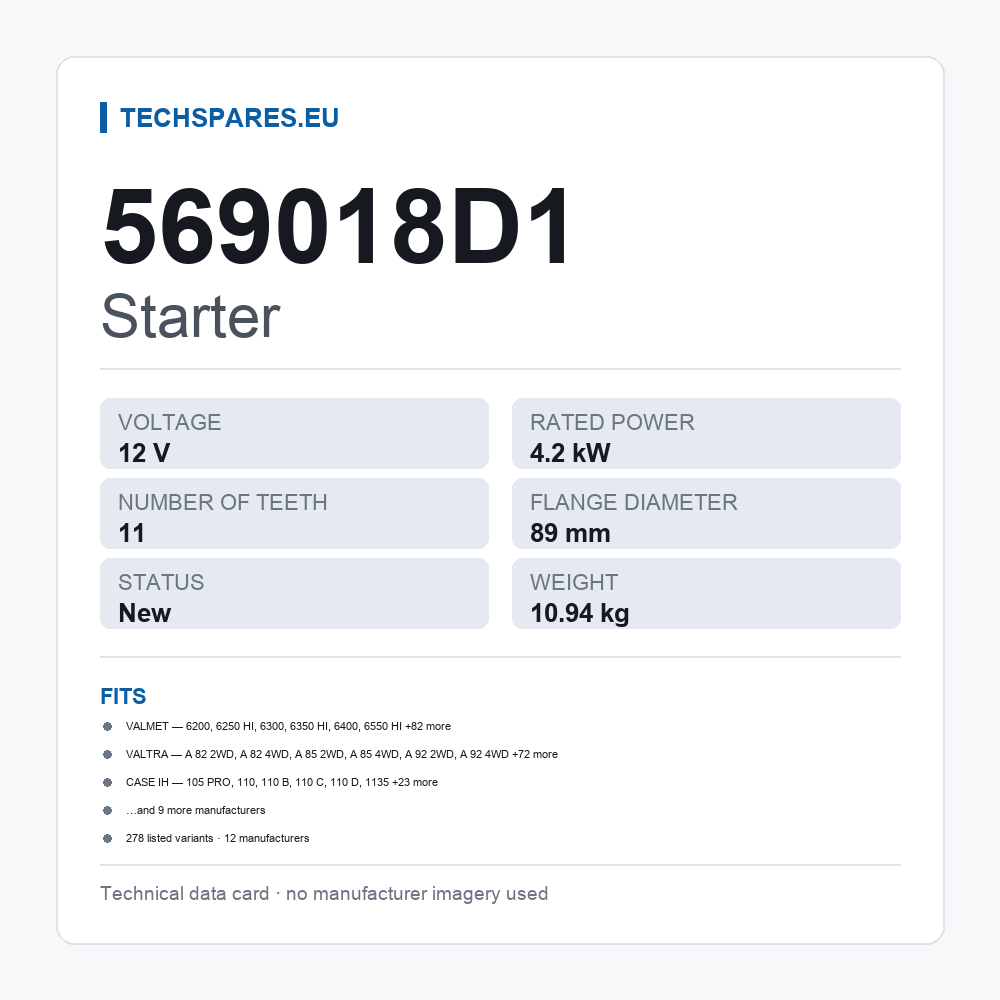

Starter 569018D1 — technical data card

Starter 569018D1

349,90 € incl. VAT · excl. VAT: 289,17 €

We dispatch within 1–4 business days of payment. The exact dispatch date is shown at checkout.

New starter, part number 569018D1. Fits 278 listed machine variants from 12 manufacturers. Ships from EU stock.

Manufactured by MAHLE · see Manufacturer & product safety
Original equipment numbers (16): AGCO 569018D1, 836673290, 836866817, 836873088, 836873290, 836873457, 8364 650 0, V836866817, V836873457 · CASE 47111575, 84284540, 87751000, 162000090722 · NEW HOLLAND 87693781, 87751000, 162000090722
OEM numbers are shown for identification only and do not imply the part is an original manufacturer part.

1 in stock — ready for dispatch

SKU: 569018D1
Category:

Description

Starter 569018D1 is supplied in new condition, rated 12 V / 4.2 kW. It is listed for 278 machine variants across 12 manufacturers. We ship from stock inside the EU — no import duty, no customs delay, no transatlantic wait.

Listed against original number 569018D1 (AGCO) for identification and compatibility. This is not a AGCO-branded product. It is a new part supplied in the producer’s original packaging — the producer is named in the Manufacturer & product safety section below, as Regulation (EU) 2023/988 requires.

Technical specification

Voltage 12 V
Rated power 4.2 kW
Rotation direction clockwise
Flange diameter 89 mm
Number of teeth 11
Gearbox type With reducing transmission
Status New
Weight 10.94 kg
Country of origin Poland
Mounting Angle [degrees] 45
Number of mounting bores 3
Transmission Type with reduction gear
Packaging height [cm] 14.5
Packaging width [cm] 21.5
Packaging length [cm] 38.2

Vehicle and machine applications (278)

Fits equipment from 12 manufacturers: AGCO, CASE IH, CHALLENGER, CRYSTAL, FENDT, HESSTON, JCB, MASSEY FERGUSON, SAMPO ROSENLEW, VALMET, VALTRA, ZETOR.

Grouped by manufacturer — click a group to expand. All listed variants are on this page.

VALMET — 96 variants
Make Model Engine Engine code Years kW hp ccm
VALMET 6000 6200 420 DSRE 1996/01 – 2000/12 59 80 —
VALMET 6000 6250 HI 420 DSRE 1991/01 – n/a 59 80 —
VALMET 6000 6300 420 DW 1991/01 – n/a 66 90 —
VALMET 6000 6350 HI 420 DSRE 2003/01 – n/a 66 90 —
VALMET 6000 6400 420 DW 1991/01 – n/a 70 95 —
VALMET 6000 6550 HI 420 DWRE 1998/01 – 2003/12 81 110 —
VALMET 6000 6850 HI 420 DWRIE 1998/01 – 2003/12 88 120 —
VALMET 6000 6900 620 DRE 1997/01 – 2000/12 88 120 —
VALMET A A 750 L 420 D 2009/08 – n/a — — —
VALMET A A 85 44 DT n/a – n/a 65 88 —
VALMET A A 85 L 33 DT n/a – n/a — — —
VALMET A A 85 L 44 DT n/a – n/a — — —
VALMET A A 85 N – n/a – n/a — — —
VALMET A A 85 N 44 DT n/a – n/a — — —
VALMET A A 95 44 DTA n/a – n/a 101 137 —
VALMET A A 950 – 2009/03 – n/a 70 95 —
VALMET A A 950 F 320 DS n/a – n/a 70 95 —
VALMET A A 950 L 33 DTA n/a – n/a — — —
VALMET A A 950 N 44 DTA n/a – n/a — — —
VALMET A A 990 – 2009/08 – n/a — — —
VALMET BC BC4500 620 DSR 2008/03 – n/a 147 200 —
VALMET BC BC4500R 620 DSR 2008/03 – n/a 147 200 —
VALMET BH BH135I 420DSA n/a – n/a 101 137 —
VALMET BH BH145 620 DS 2008/03 – n/a 112 153 —
VALMET BH BH165 620 DS 2008/03 – n/a 128 174 —
VALMET BH BH180 620 DS 2008/03 – n/a 139 189 —
VALMET BH BH185I 620DSA 2008/03 – n/a — — —
VALMET BH BH200 620 DS n/a – n/a 147 200 —
VALMET BH BH205I 620DSA 2008/07 – n/a — — —
VALMET BH BH210I 620 DS n/a – n/a 147 200 —
VALMET N N101 44 DT, 44 DTA n/a – n/a — — —
VALMET N N101 44 DTA n/a – n/a — — —
VALMET N N101 C 44 DTA n/a – n/a 74 101 —
VALMET N N101 H – n/a – n/a 82 111 —
VALMET N N103 33 AWI n/a – n/a 82 111 —
VALMET N N103.4 HITECH 44 AWI n/a – n/a 82 112 —
VALMET N N111 44 DTA n/a – n/a — — —
VALMET N N111 C 44 DTA n/a – n/a — — —
VALMET N N111 C 44 EWA n/a – n/a — — —
VALMET N N111 E 44 EWA n/a – n/a — — —
VALMET N N111 E 44 DTA n/a – n/a — — —
VALMET N N111 H 44 EWA n/a – n/a — — —
VALMET N N111 H 44 DTA n/a – n/a — — —
VALMET N N111 LS 44 EWA n/a – n/a — — —
VALMET N N111 LS 44 DTA n/a – n/a — — —
VALMET N N113 44 AWI, 44 CWA n/a – n/a 91 124 —
VALMET N N121 H 44 CWA n/a – n/a — — —
VALMET N N121 LS 44 CWA n/a – n/a — — —
VALMET N N123 HITECH 44 CWA n/a – n/a 99 135 —
VALMET N N123 VERSU 49 AWI n/a – n/a 99 135 —
VALMET N N141 H 49 CWA n/a – n/a 110 150 —
VALMET N N141 LS 49 CWA n/a – n/a 110 150 —
VALMET N N143 49 AWI n/a – n/a 112 152 —
VALMET N N143 D – n/a – n/a 112 152 —
VALMET N N143 HITECH 49 AWI n/a – n/a 99 135 —
VALMET N N143 VERSU 49 AWI n/a – n/a 99 135 —
VALMET N N163 49 AWI n/a – n/a 120 163 —
VALMET N N163 D 49 AWI n/a – n/a 120 163 —
VALMET N N163 VERSU 49 AWI n/a – n/a 99 135 —
VALMET N N82 44 DTA n/a – n/a 65 88 —
VALMET N N91 44 DTA n/a – n/a — — —
VALMET N N91 44 DT n/a – n/a — — —
VALMET N N91 C 44 DT n/a – n/a — — —
VALMET N N91 H 44 DT n/a – n/a — — —
VALMET N N92 44 DTA n/a – n/a 74 101 —
VALMET N N93 – n/a – n/a 73 99 —
VALMET S S233 84 AWI n/a – n/a 198 270 —
VALMET S S260 645 DSBAE n/a – n/a — — —
VALMET S S263 84 AWI n/a – n/a 217 295 —
VALMET S S280 – n/a – n/a — — —
VALMET S S293 84 AWI n/a – n/a 235 320 —
VALMET S S323 84 AWI n/a – n/a 257 350 —
VALMET S S353 84 AWI n/a – n/a 272 370 —
VALMET T T121 66CTA n/a – n/a 98 133 —
VALMET T T131 66CTA n/a – n/a 98 133 —
VALMET T T133 66AWI n/a – n/a 112 152 —
VALMET T T133 H – n/a – n/a 112 152 —
VALMET T T151 66CTA n/a – n/a 114 155 —
VALMET T T153 66AWI n/a – n/a 114 155 —
VALMET T T153 D 66AWI n/a – n/a 114 155 —
VALMET T T153 HITECH 66AWI n/a – n/a 114 155 —
VALMET T T153 VERSU 66AWI n/a – n/a 114 155 —
VALMET T T161 66CTA n/a – n/a 125 170 —
VALMET T T163 E 74 AWI n/a – n/a 125 170 —
VALMET T T163 E VERSU 74 AWI n/a – n/a 125 170 —
VALMET T T163 ED 74 AWI n/a – n/a 125 170 —
VALMET T T173 HITECH 74 AWI n/a – n/a 132 180 —
VALMET T T183 74 AWI n/a – n/a 138 188 —
VALMET T T183 D 74 AWI n/a – n/a 138 188 —
VALMET T T183 VERSU 74 AWI n/a – n/a 138 188 —
VALMET T T191 74CTA n/a – n/a 136 185 —
VALMET T T193 74 AWI n/a – n/a 155 211 —
VALMET T T203 74 AWI n/a – n/a 150 204 —
VALMET T T203 D 74 AWI n/a – n/a 150 204 —
VALMET T T213 VERSU 74 AWI n/a – n/a 158 215 —
VALMET X X120 420 DWRIE 1999/01 – n/a — — —
VALTRA — 78 variants
Make Model Engine Engine code Years kW hp ccm
VALTRA A A 82 2WD 44 DT 2008/01 – 2011/12 65 88 4400
VALTRA A A 82 4WD – 2008/01 – 2011/12 65 88 4400
VALTRA A A 85 2WD – 2002/01 – 2008/12 65 88 4400
VALTRA A A 85 4WD 44 DT 2002/01 – 2008/12 65 88 4400
VALTRA A A 92 2WD 44 DT 2008/01 – 2011/12 74 101 4400
VALTRA A A 92 4WD – 2008/01 – 2011/12 74 101 4400
VALTRA A A 95 2WD 44 DT 2002/01 – 2008/12 72 98 4400
VALTRA A A 95 4WD 44 DT 2002/01 – 2008/12 72 98 4400
VALTRA N N 101 44 CWA (12V), 44 DTA, 44 CWA (24V) 2005/01 – 2007/12 76 104 4399
VALTRA N N 111 44 CWA (12V), 44 DTA 2005/01 – 2007/12 81 110 4399
VALTRA N N 111E 44 EWA, 44 CWA (12V), 44 CWA (24V) 2005/01 – 2007/12 85 115 4399
VALTRA N N 113 – 2012/01 – n/a 96 131 4399
VALTRA N N 121 44 CWA (12V) 2005/01 – 2007/12 96 130 4399
VALTRA N N 122 – 2009/01 – 2011/12 93 126 4399
VALTRA N N 123 – 2011/01 – n/a 99 135 4912
VALTRA N N 141 49 CWA (12V) 2005/01 – 2007/12 106 144 4912
VALTRA N N 142 – 2009/01 – 2011/12 104 142 4912
VALTRA N N 143 – 2011/01 – n/a 118 160 4912
VALTRA N N 163 – 2011/01 – n/a 126 171 4912
VALTRA N N 174 D 49 AWI n/a – n/a — — —
VALTRA N N 91 44 DT 2005/01 – 2007/12 74 101 4399
VALTRA S S 230 – 2001/01 – 2003/12 169 230 8400
VALTRA S S 232 84 CTA (24V) 2008/01 – 2013/12 176 240 8400
VALTRA S S 233 – 2008/01 – 2013/12 176 240 8400
VALTRA S S 240 – 2003/01 – 2006/12 181 246 8400
VALTRA S S 260 – 2003/01 – 2006/12 191 260 8400
VALTRA S S 262 84 CTA (24V) 2008/01 – 2011/12 195 265 8400
VALTRA S S 263 – 2008/01 – 2011/12 195 265 8400
VALTRA S S 274 – 2014/01 – n/a 198 270 8400
VALTRA S S 280 – 2003/01 – 2008/12 206 280 8400
VALTRA S S 292 84 CTA (24V) 2008/01 – 2011/12 213 290 8400
VALTRA S S 293 – 2008/01 – 2011/12 213 290 8400
VALTRA S S 294 – 2014/01 – n/a 217 295 8400
VALTRA S S 322 84 CTA (24V) 2008/01 – 2011/12 232 315 8400
VALTRA S S 323 – 2008/01 – 2011/12 235 320 8400
VALTRA S S 324 – 2014/01 – n/a 235 320 8400
VALTRA S S 352 84 CTA (24V) 2008/01 – 2011/12 272 370 8400
VALTRA S S 353 – 2008/01 – 2011/12 250 340 8400
VALTRA S S 374 – 2014/01 – n/a 272 370 8400
VALTRA T T 120 620 DSRE 2004/01 – 2007/12 92 125 6598
VALTRA T T 120C – 2004/01 – 2007/12 92 125 6598
VALTRA T T 121 – 2007/01 – 2011/12 98 133 6598
VALTRA T T 130 620 DSRE 2004/01 – 2007/12 99 135 6598
VALTRA T T 130C – 2004/01 – 2007/12 99 135 6598
VALTRA T T 131 – 2011/01 – 2011/12 109 148 6598
VALTRA T T 132 – 2009/01 – 2011/12 93 126 6598
VALTRA T T 133 – 2012/01 – n/a 104 141 6598
VALTRA T T 140 620 DSRAE 2004/01 – 2007/12 107 145 6598
VALTRA T T 140C – 2004/01 – 2007/12 107 145 6598
VALTRA T T 144 – 2015/02 – n/a 125 170 6600
VALTRA T T 150 – 2004/01 – 2007/12 114 155 6598
VALTRA T T 150C – 2004/01 – 2007/12 114 155 6598
VALTRA T T 151E – 2011/01 – 2012/12 117 159 6598
VALTRA T T 152 – 2009/01 – 2011/12 103 140 6598
VALTRA T T 153 – 2012/01 – n/a 114 155 6598
VALTRA T T 154 – 2015/02 – n/a 132 180 6600
VALTRA T T 160 620 DSRAE 2004/01 – 2007/12 121 165 6598
VALTRA T T 160C – 2004/01 – 2007/12 121 165 6598
VALTRA T T 161 – 2011/01 – 2012/12 125 170 6598
VALTRA T T 162E – 2009/01 – 2011/12 111 151 6598
VALTRA T T 163E – 2012/01 – n/a 125 170 7368
VALTRA T T 170 630 DSRAE 2002/04 – 2007/12 132 180 7368
VALTRA T T 170C – 2004/01 – 2007/12 129 175 7368
VALTRA T T 171 – 2007/01 – 2012/12 132 180 7368
VALTRA T T 172 – 2009/01 – 2011/12 118 160 7368
VALTRA T T 173 – 2012/01 – n/a 132 180 7368
VALTRA T T 174 – 2015/02 – n/a 140 190 7400
VALTRA T T 180 74 ETA 2002/04 – 2007/12 132 180 7368
VALTRA T T 182 – 2009/01 – 2011/12 125 170 7368
VALTRA T T 190 74 ETA 2002/04 – 2007/12 136 185 7368
VALTRA T T 191 – 2007/01 – 2012/12 132 180 7368
VALTRA T T 193 – 2012/01 – n/a 140 190 7368
VALTRA T T 194 – 2015/02 – n/a 155 211 7400
VALTRA T T 202 – 2009/01 – 2011/12 132 180 7368
VALTRA T T 203 – 2012/01 – n/a 147 200 7368
VALTRA T T 213 – 2012/01 – n/a 150 204 7368
VALTRA T T 214 – 2015/02 – n/a 169 230 7400
VALTRA T T 234 – 2015/02 – n/a 184 250 7400
CASE IH — 32 variants
Make Model Engine Engine code Years kW hp ccm
CASE IH CS 105 PRO – 1996/01 – n/a — — —
CASE IH CS 110 – 2004/01 – n/a — — —
CASE IH CS 110 420.85 1996/01 – 2003/12 81 110 4397
CASE IH CS 110 B – n/a – n/a — — —
CASE IH CS 110 C – n/a – n/a — — —
CASE IH CS 110 D – n/a – n/a — — —
CASE IH CS 120 620.94 1996/01 – 2003/12 88 120 6597
CASE IH CS 120 B – n/a – n/a — — —
CASE IH CS 120 C – n/a – n/a — — —
CASE IH CS 120 D – n/a – n/a — — —
CASE IH CS 150 620.93 1996/01 – 2003/12 110 150 6597
CASE IH CS 150 B – n/a – n/a — — —
CASE IH CS 150 C – n/a – n/a — — —
CASE IH CS 150 D – n/a – n/a — — —
CASE IH CS 80 – 2006/01 – n/a 60 82 —
CASE IH CS 80 PRO – 2007/10 – n/a 60 82 —
CASE IH CS 85 PRO – 2008/01 – n/a 62 85 —
CASE IH CS 95 PRO – 2008/01 – n/a 68 93 —
CASE IH CVX 1135 – 2003/01 – 2007/12 102 139 6597
CASE IH CVX 1145 – 2003/01 – 2007/12 109 148 6597
CASE IH CVX 1155 – 2003/01 – 2007/12 117 159 6597
CASE IH CVX 1170 – 2003/01 – 2007/12 128 174 6597
CASE IH CVX 1190 – 2003/01 – 2005/12 142 193 6597
CASE IH CVX 1195 – 2005/01 – 2007/12 143 195 6597
CASE IH CVX 120 620.87 2000/01 – 2003/12 88 120 6597
CASE IH CVX 130 620.88 2000/01 – 2003/12 96 131 6597
CASE IH CVX 140 – 2007/01 – n/a 104 141 —
CASE IH CVX 150 620.89 2000/01 – 2003/12 110 150 6597
CASE IH CVX 160 – 2007/01 – n/a 118 160 —
CASE IH CVX 170 620.90 2000/01 – 2003/12 125 170 6597
CASE IH CVX 175 – 2007/01 – n/a 129 175 —
CASE IH CVX 195 – 2007/01 – n/a 144 196 —
MASSEY FERGUSON — 21 variants
Make Model Engine Engine code Years kW hp ccm
MASSEY FERGUSON 30 MF 32 620 DS n/a – n/a — — —
MASSEY FERGUSON 30 MF 34 620DSA n/a – n/a — — —
MASSEY FERGUSON 400 460 XTRA 44 DTA 2009/06 – n/a — — —
MASSEY FERGUSON 400 470 XTRA 44 DTA 2009/06 – n/a — — —
MASSEY FERGUSON 400 480 XTRA 44 DTA 2009/06 – n/a — — —
MASSEY FERGUSON 4000 4292 420DS 2009/06 – n/a — — —
MASSEY FERGUSON 4000 4297 420DS 2009/06 – n/a — — —
MASSEY FERGUSON 4000 4299 420DSA 2009/06 – n/a — — —
MASSEY FERGUSON 5000 5650 620 DS 2008/03 – n/a — — —
MASSEY FERGUSON 7000 7270 84 CTA, 84 ETA n/a – n/a — — —
MASSEY FERGUSON 8000 8650 84 CTA 2008/11 – 2012/12 198 270 8400
MASSEY FERGUSON 8000 8660 84 CTA 2008/11 – 2012/12 217 295 8400
MASSEY FERGUSON 8000 8670 84 CTA 2008/11 – 2012/12 235 320 8400
MASSEY FERGUSON 8000 8680 84 CTA 2008/11 – 2012/12 257 350 8400
MASSEY FERGUSON 8000 8690 84 CTA 2008/11 – 2012/12 272 370 8400
MASSEY FERGUSON 9000 9690 CITIUS 84 CTA n/a – n/a — — —
MASSEY FERGUSON 9000 9695 CITIUS 84 CTA n/a – n/a — — —
MASSEY FERGUSON 9000 9790 CITIUS 84 CTA n/a – n/a — — —
MASSEY FERGUSON 9000 9795 CITIUS 84 CTA n/a – n/a — — —
MASSEY FERGUSON FORTIA 9695 84 CTA 2009/01 – 2011/12 243 331 8400
MASSEY FERGUSON FORTIA 9795 84 CTA 2009/01 – 2011/12 304 414 8400
CHALLENGER — 17 variants
Make Model Engine Engine code Years kW hp ccm
CHALLENGER 600 652C – n/a – n/a 265 361 —
CHALLENGER 600 660B – n/a – n/a 223 303 —
CHALLENGER 600 670B – n/a – n/a 261 355 —
CHALLENGER 600 672 – n/a – n/a 203 276 —
CHALLENGER MT MT 665D – n/a – n/a 239 325 —
CHALLENGER MT MT 685D – n/a – n/a 276 376 —
CHALLENGER MT MT 745D – n/a – n/a 250 340 —
CHALLENGER MT MT 755D – n/a – n/a 267 363 —
CHALLENGER MT MT 765D – n/a – n/a 261 355 8400
CHALLENGER ROGATOR RG 1100 – n/a – n/a 252 343 —
CHALLENGER ROGATOR RG 1300 – n/a – n/a 276 376 —
CHALLENGER ROGATOR RG 635B – n/a – n/a 129 176 —
CHALLENGER ROGATOR RG 645B – n/a – n/a 164 223 —
CHALLENGER ROGATOR RG 655B – n/a – n/a 178 242 —
CHALLENGER TG TG 8333 – n/a – n/a 264 359 —
CHALLENGER TG TG 845 – n/a – n/a 302 411 —
CHALLENGER WR WR 9740 – n/a – n/a — — —
FENDT — 9 variants
Make Model Engine Engine code Years kW hp ccm
FENDT 300 310 VARIO 2WD TCD 4.1 L04 4V 2012/10 – n/a 77 105 4038
FENDT 300 310 VARIO 4WD TCD 4.1 L04 4V 2012/10 – n/a 77 105 4038
FENDT 300 311 VARIO 2WD TCD 4.1 L04 4V 2012/10 – n/a 85 115 4038
FENDT 300 311 VARIO 4WD TCD 4.1 L04 4V 2012/10 – n/a 85 115 4038
FENDT 300 312 VARIO 2WD – 2012/10 – n/a 92 125 4038
FENDT 300 312 VARIO 4WD TCD 4.1 L04 4V 2012/10 – n/a 92 125 4038
FENDT 300 313 VARIO TCD 4.1 L04 4V 2010/09 – n/a 98 133 4038
FENDT 9000 9300R 84 CTA 2009/01 – 2013/12 243 330 —
FENDT 9000 9350R 84 CTA 2009/01 – 2012/12 279 379 —
AGCO — 6 variants
Make Model Engine Engine code Years kW hp ccm
AGCO DT 205B 84 CTA 2009/01 – 2010/12 — — 8400
AGCO DT 220A 84 CTA 2005/01 – 2008/12 — — 8400
AGCO DT 225B 84 CTA 2009/01 – 2010/12 — — 8400
AGCO DT 240A 84 CTA 2005/01 – 2008/12 — — 8400
AGCO DT 250B 84 CTA 2009/01 – 2010/12 — — 8400
AGCO DT 275B 84 CTA 2009/01 – 2010/12 — — 8400
HESSTON — 6 variants
Make Model Engine Engine code Years kW hp ccm
HESSTON WR WR9735 49 CTA T4F n/a – n/a 101 137 —
HESSTON WR WR9740 49 CTA T4F n/a – n/a 101 137 —
HESSTON WR WR9760 49 CTA T4F n/a – n/a 138 188 —
HESSTON WR WR9770 66 CTA T4F n/a – n/a 162 220 —
HESSTON WR WR9860 49 CTA T4F n/a – n/a 143 195 —
HESSTON WR WR9870 66 CTA T4F n/a – n/a 165 225 —
JCB — 6 variants
Make Model Engine Engine code Years kW hp ccm
JCB FASTRAC 2155 QSB 6.7 2010/01 – n/a 118 160 6702
JCB FASTRAC 2170 QSB 6.7 2010/01 – n/a 125 170 6702
JCB FASTRAC 3200 QSB 6.7, 74 AWI 2010/01 – n/a 142 193 7365
JCB FASTRAC 3230 QSB 6.7, 74 AWI 2010/01 – n/a 162 220 7365
JCB FASTRAC 8280 AWI-IV-3B 2010/01 – n/a 188 256 8419
JCB FASTRAC 8310 AWI-IV-3B 2010/01 – n/a 206 280 8419
SAMPO ROSENLEW — 5 variants
Make Model Engine Engine code Years kW hp ccm
SAMPO ROSENLEW SR SR 1046X 44 DT n/a – n/a — — 4400
SAMPO ROSENLEW SR SR 1066 44 DT n/a – n/a — — 4400
SAMPO ROSENLEW SR SR 3045C 44 DT n/a – n/a — — 4400
SAMPO ROSENLEW SR SR 3065L 44 DT n/a – n/a — — 4400
SAMPO ROSENLEW SR SR 3085L TS 44 DT n/a – n/a — — 4400
CRYSTAL — 1 variant
Make Model Engine Engine code Years kW hp ccm
CRYSTAL ORION 16 – n/a – n/a — — —
ZETOR — 1 variant
Make Model Engine Engine code Years kW hp ccm
ZETOR 5000 5245 Z 5201 1984/01 – 1993/12 37 51 2696

OEM part number equivalent (16)

This part is listed as the equivalent of the original numbers below. If your machine’s parts book shows any of these, this is the item you need.

Number Brand
569018D1 AGCO
836673290 AGCO
836866817 AGCO
836873088 AGCO
836873290 AGCO
836873457 AGCO
8364 650 0 AGCO
V836866817 AGCO
V836873457 AGCO
47111575 CASE
84284540 CASE
87751000 CASE
162000090722 CASE
87693781 NEW HOLLAND
87751000 NEW HOLLAND
162000090722 NEW HOLLAND

Shipping and warranty

We dispatch within 1–4 business days of payment. The exact dispatch date is shown at checkout. Prices include 21 % VAT; the price without VAT is shown next to it. Business customers from another EU country with a valid VAT number pay 0 % VAT at checkout. Consumers have the statutory two-year EU warranty; business customers have our 12-month warranty — see Returns and refunds.

Manufacturer

MAHLE Aftermarket GmbH
Pragstraße 26–46, D-70376 Stuttgart, Germany
E-mail: aftermarket.support@mahle.com

Product identification

Our part code: 569018D1

Safety information

  • This part is intended for installation by a qualified technician following the machine manufacturer’s service instructions.
  • Before fitting, confirm that the part number matches your machine — the cross-reference table is in the product description.
  • Work only with the engine switched off and the battery disconnected; on hydraulic and pneumatic systems, depressurise the system first.
  • An incorrectly fitted part, or a part used for another purpose, can damage the machine or cause injury.
  • Store dry, in the original packaging, out of the reach of children.

Data taken from the manufacturer’s own official page: https://www.mahle-aftermarket.com/eu/en/imprint/ (checked 2026-07-30)

Related products
