Description
Starter RE521488 is supplied in new condition, rated 12 V / 3.2 kW. It is listed for 35 machine variants across 1 manufacturer. We ship from stock inside the EU — no import duty, no customs delay, no transatlantic wait.
Listed against original number RE521488 (JOHN DEERE) for identification and compatibility. This is not a JOHN DEERE-branded product. It is a new part supplied in the producer’s original packaging — the producer is named in the Manufacturer & product safety section below, as Regulation (EU) 2023/988 requires.

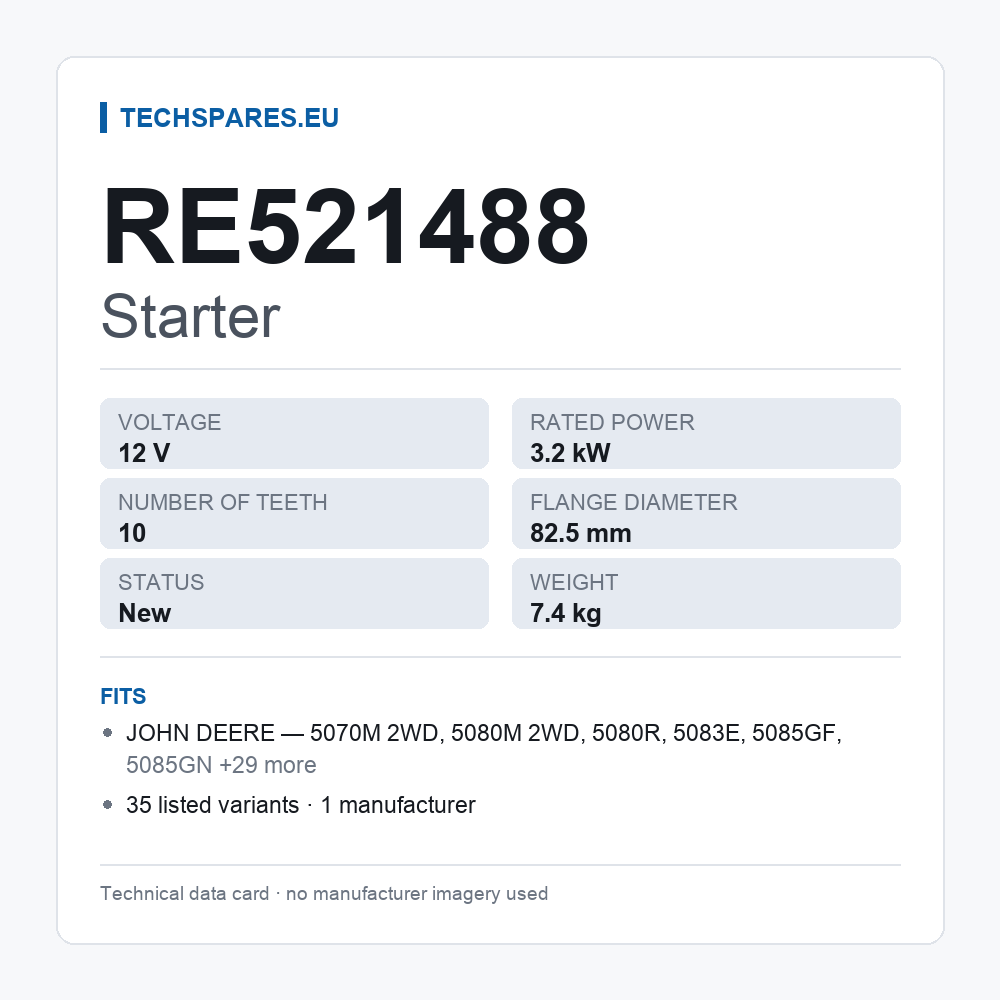

Technical specification
| Voltage | 12 V |
|---|---|
| Rated power | 3.2 kW |
| Rotation direction | clockwise |
| Flange diameter | 82.5 mm |
| Number of teeth | 10 |
| Gearbox type | With reducing transmission |
| Status | New |
| Weight | 7.40 kg |
| Country of origin | Poland |
| Number of mounting bores | 2 |
| Transmission Type | with reduction gear |
| Packaging height [cm] | 13.5 |
| Packaging width [cm] | 16.6 |
| Packaging length [cm] | 31.8 |
Vehicle and machine applications (35)
Fits equipment from 1 manufacturer: JOHN DEERE.
| Make | Model | Engine | Engine code | Years | kW | hp | ccm |
|---|---|---|---|---|---|---|---|
| JOHN DEERE | 5000 | 5070M 2WD | 4045HL286 | 2009/01 – 2012/12 | 51 | 69 | 4525 |
| JOHN DEERE | 5000 | 5080M 2WD | 4045HAT80 | 2011/03 – n/a | 59 | 80 | 4525 |
| JOHN DEERE | 5000 | 5080R | 4045HAT80, 4045HL284 | 2009/01 – 2012/12 | 59 | 80 | 4525 |
| JOHN DEERE | 5000 | 5083E | 4045 | 2008/12 – 2011/12 | 44 | 60 | 4500 |
| JOHN DEERE | 5000 | 5085GF | – | 2009/10 – n/a | 62 | 85 | 3200 |
| JOHN DEERE | 5000 | 5085GN | – | 2009/10 – n/a | 62 | 85 | 3200 |
| JOHN DEERE | 5000 | 5085GV | – | 2009/10 – n/a | 62 | 85 | 3200 |
| JOHN DEERE | 5000 | 5085M | 4045 | 2008/12 – 2012/12 | 62 | 85 | 3200 |
| JOHN DEERE | 5000 | 5088GL | – | 2009/10 – n/a | 62 | 85 | 3200 |
| JOHN DEERE | 5000 | 5090G 4WD | 4045HAT81, 4045HAT80 | 2009/10 – 2012/12 | 66 | 90 | 4525 |
| JOHN DEERE | 5000 | 5090M 2WD | 4045HAT81, 4045HL286 | 2009/10 – n/a | 66 | 90 | 4525 |
| JOHN DEERE | 5000 | 5090R | 4045HAT81, 4045HL284 | 2009/01 – 2012/12 | 66 | 90 | 4525 |
| JOHN DEERE | 5000 | 5093E | 4045 | 2008/12 – 2012/12 | 68 | 93 | 4500 |
| JOHN DEERE | 5000 | 5093EN | – | 2009/12 – 2012/12 | 68 | 93 | 4500 |
| JOHN DEERE | 5000 | 5095M 2WD | 4045HAT81, 4045HL286 | 2009/10 – n/a | 67 | 91 | 4525 |
| JOHN DEERE | 5000 | 5100GF 2WD | 4045HAT82, 4045HAT80 | 2009/12 – 2012/12 | 73 | 99 | 4525 |
| JOHN DEERE | 5000 | 5100GF 4WD | 4045HAT82 | 2009/10 – n/a | 73 | 99 | 4525 |
| JOHN DEERE | 5000 | 5100GN 2WD | 4045HAT82 | 2009/10 – n/a | 73 | 99 | 4525 |
| JOHN DEERE | 5000 | 5100GN 4WD | 4045HAT82 | 2009/10 – n/a | 73 | 99 | 4525 |
| JOHN DEERE | 5000 | 5100GV 2WD | 4045HAT82, 4045HAT80 | 2009/12 – 2012/12 | 73 | 99 | 4525 |
| JOHN DEERE | 5000 | 5100GV 4WD | 4045HAT82 | 2009/10 – n/a | 73 | 99 | 4525 |
| JOHN DEERE | 5000 | 5100M 2WD | 4045HAT82, 4045HL286 | 2009/01 – 2012/12 | 73 | 99 | 4525 |
| JOHN DEERE | 5000 | 5100M 4WD | 4045HAT82, 4045HL286 | 2008/01 – 2012/12 | 73 | 99 | 4525 |
| JOHN DEERE | 5000 | 5100R | 4045HAT82 | 2009/01 – 2012/12 | 73 | 99 | 4525 |
| JOHN DEERE | 5000 | 5100RN | 4045HAT82, 4045HL284 | 2009/01 – 2012/12 | 73 | 99 | 4525 |
| JOHN DEERE | 5000 | 5101E | 4045 | 2008/12 – 2012/12 | 74 | 101 | 4500 |
| JOHN DEERE | 5000 | 5101EN | – | 2009/12 – 2012/12 | 74 | 101 | 4500 |
| JOHN DEERE | 5000 | 5115M | – | 2012/12 – n/a | 62 | 85 | 4525 |
| JOHN DEERE | 5000 | 5425 | – | 2005/01 – 2008/12 | 60 | 81 | 4500 |
| JOHN DEERE | 5000 | 5425 H | – | n/a – n/a | — | — | — |
| JOHN DEERE | 5000 | 5425 HC | – | n/a – n/a | — | — | — |
| JOHN DEERE | 5000 | 5425N | – | 2005/01 – 2008/12 | 60 | 81 | 4500 |
| JOHN DEERE | 5000 | 5525 | – | 2005/01 – 2008/12 | 67 | 91 | 4500 |
| JOHN DEERE | 5000 | 5525 HI-CROP | – | 2005/01 – 2008/12 | 67 | 91 | 4500 |
| JOHN DEERE | 5000 | 5525 N | – | n/a – n/a | — | — | — |
OEM part number equivalent (4)
This part is listed as the equivalent of the original numbers below. If your machine’s parts book shows any of these, this is the item you need.
| Number | Brand |
|---|---|
| RE521488 | JOHN DEERE |
| RE543483 | JOHN DEERE |
| RE551446 | JOHN DEERE |
| SE502913 | JOHN DEERE |
Shipping and warranty
We dispatch within 1–4 business days of payment. The exact dispatch date is shown at checkout. Prices include 21 % VAT; the price without VAT is shown next to it. Business customers from another EU country with a valid VAT number pay 0 % VAT at checkout. Consumers have the statutory two-year EU warranty; business customers have our 12-month warranty — see Returns and refunds.
