Aprašymas

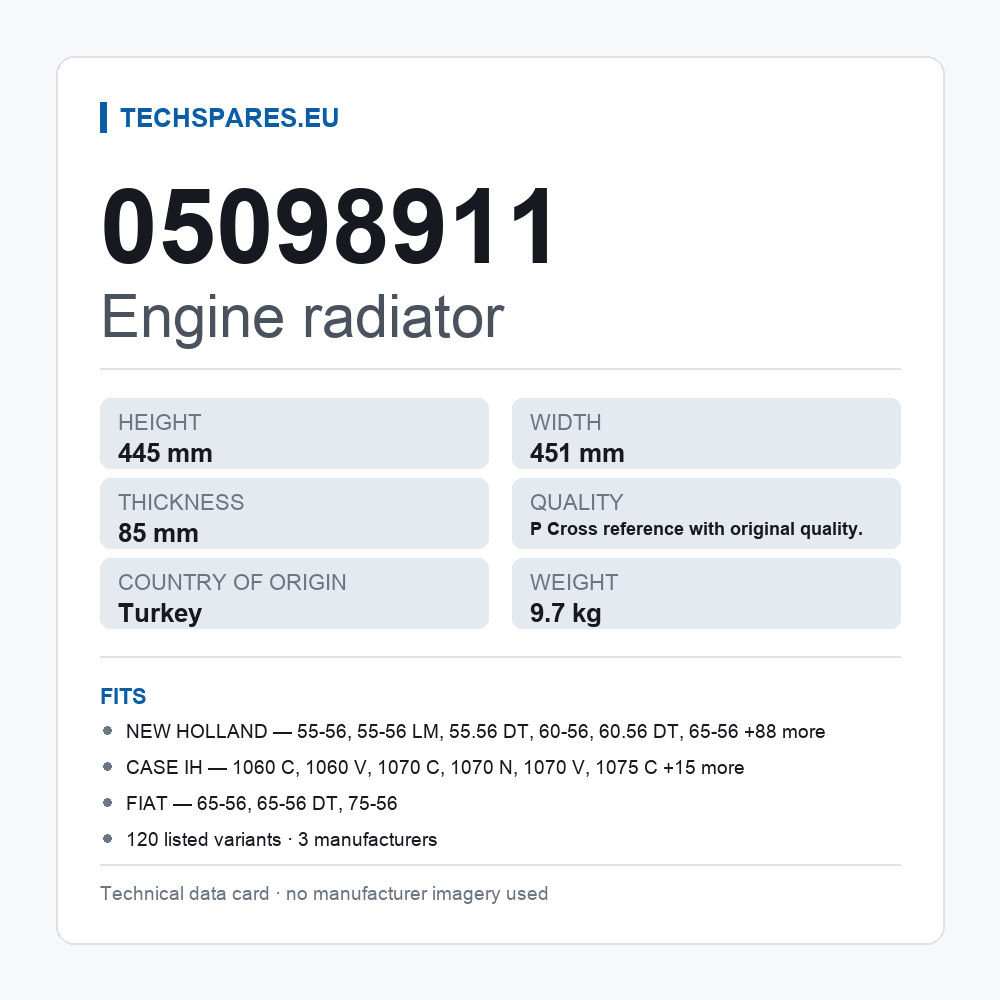

Variklio radiatorius 05098911. Tiekiama nauja dalis. Tinka 120 technikos variantų iš 3 gamintojų. Siunčiame iš sandėlio ES viduje, be importo muitų, be muitinės, be laukimo iš už Atlanto.
Nurodyta pagal originalų numerį 05098911 (NEW HOLLAND) identifikavimui ir suderinamumui. Tai NĖRA NEW HOLLAND prekės ženklo gaminys. Tai nauja dalis originalioje gamintojo pakuotėje. Gamintojas nurodytas skiltyje „Gamintojas ir gaminio sauga“ žemiau, kaip reikalauja Reglamentas (ES) 2023/988.
Techninė specifikacija
| Aukštis | 445 mm |
|---|---|
| Plotis | 451 mm |
| Storis | 85 mm |
| Gamybos technologija | klijuota |
| Įėjimo skersmuo | 38 mm |
| Išėjimo skersmuo | 38 mm |
| Kokybė | P – Pakaitinė dalis, atitinkanti originalo kokybę |
| Svoris | 9.70 kg |
| Kilmės šalis | Turkija |
| Radiatoriaus rūšis | Lituojamos plokštelės |
| Vandens talpos medžiaga | Aliuminis |
| Pakuotės plotis [cm] | 14.5 |
| Pakuotės ilgis [cm] | 47 |
| Pakuotės aukštis [cm] | 62 |
Technika, kuriai tinka (120)
Tinka 3 gamintojų technikai: CASE IH, FIAT, NEW HOLLAND.
| Markė | Modelis | Variklis | Variklio kodas | Metai | kW | AG | ccm |
|---|---|---|---|---|---|---|---|
| CASE IH | JX | 1060 C | – | 2003/01 – 2008/12 | 43 | 59 | 2930 |
| CASE IH | JX | 1060 V | – | 2004/05 – n/a | 43 | 59 | 2930 |
| CASE IH | JX | 1070 C | – | 2003/01 – 2008/12 | 53 | 72 | 2930 |
| CASE IH | JX | 1070 N | – | 2004/05 – n/a | 53 | 72 | — |
| CASE IH | JX | 1070 V | – | 2004/05 – n/a | 53 | 72 | 2930 |
| CASE IH | JX | 1075 C | – | 2003/01 – 2008/12 | 56 | 76 | 2930 |
| CASE IH | JX | 1075 N | – | 2004/05 – 2009/12 | 56 | 76 | 2900 |
| CASE IH | JX | 1075 V | – | 2004/05 – n/a | 56 | 76 | 2930 |
| CASE IH | JX | 1095 N | – | 2004/12 – 2008/12 | 70 | 95 | 4485 |
| CASE IH | JX | 1095 V | – | 2004/12 – 2008/12 | 72 | 98 | 4485 |
| CASE IH | JX | 75 | – | 2002/11 – 2006/12 | 55 | 75 | 3600 |
| CASE IH | JX | 80 | – | 2004/01 – 2006/12 | 53 | 72 | 3900 |
| CASE IH | JX | 80 | F5C | 2008/12 – 2012/12 | 53 | 72 | 3900 |
| CASE IH | JX | 80 2WD | – | 2006/01 – 2008/12 | 59 | 80 | 3908 |
| CASE IH | JX | 80 4WD | – | 2006/01 – 2008/12 | 59 | 80 | 3908 |
| CASE IH | JX | 85 | – | 2002/11 – 2006/12 | 62 | 85 | 3900 |
| CASE IH | JX | 90 | – | 2004/01 – 2006/12 | 60 | 82 | 3900 |
| CASE IH | JX | 90 | F5C | 2008/01 – 2012/12 | 60 | 82 | 3900 |
| CASE IH | JX | 90 2WD | – | 2006/01 – 2008/12 | 66 | 90 | 3908 |
| CASE IH | JX | 90 4WD | – | 2006/01 – 2008/12 | 60 | 82 | 3908 |
| CASE IH | JX | 95 | – | 2002/11 – 2004/12 | 66 | 90 | 3900 |
| CASE IH | JX | 95 2WD | – | 2006/01 – 2008/12 | 69 | 94 | 3908 |
| CASE IH | JX | 95 4WD | – | 2006/01 – 2008/12 | 69 | 94 | 3908 |
| FIAT | 65-XX | 65-56 | – | n/a – n/a | — | — | — |
| FIAT | 65-XX | 65-56 DT | – | n/a – n/a | — | — | — |
| FIAT | 75-XX | 75-56 | – | n/a – n/a | — | — | — |
| NEW HOLLAND | TD | TD 80 | – | n/a – n/a | — | — | — |
| NEW HOLLAND | TD | TD 90 | – | n/a – n/a | — | — | — |
| NEW HOLLAND | TD | TD 95 | – | n/a – n/a | — | — | — |
| NEW HOLLAND | TD3 | TD3.50 | – | 2011/10 – n/a | 36 | 49 | 2216 |
| NEW HOLLAND | TD5 | TD5.65 | – | 2011/11 – n/a | 48 | 65 | 2930 |
| NEW HOLLAND | TD5 | TD5.75 2WD | – | 2011/11 – n/a | 56 | 76 | 3908 |
| NEW HOLLAND | TD5 | TD5.75 4WD | – | 2011/11 – n/a | 56 | 76 | 3908 |
| NEW HOLLAND | TD5 | TD5.80 2WD | – | 2011/11 – n/a | 60 | 82 | 2930 |
| NEW HOLLAND | TD5 | TD5.80 4WD | – | 2011/11 – n/a | 60 | 82 | 2930 |
| NEW HOLLAND | TD5 | TD5.85 | – | 2011/11 – n/a | 60 | 82 | 3200 |
| NEW HOLLAND | TD5 | TD5.90 2WD | – | 2011/11 – n/a | 65 | 88 | 3908 |
| NEW HOLLAND | TD5 | TD5.90 4WD | – | 2011/11 – n/a | 65 | 88 | 3908 |
| NEW HOLLAND | TD5 | TD5.95 | – | 2011/11 – n/a | 70 | 95 | 4485 |
| NEW HOLLAND | TK | TK 100 A | – | 2004/02 – n/a | 69 | 94 | 3908 |
| NEW HOLLAND | TK | TK 76 | – | 2000/01 – 2004/02 | — | — | — |
| NEW HOLLAND | TK | TK 76 M | – | 2000/01 – 2004/02 | — | — | — |
| NEW HOLLAND | TK | TK 80 A | – | 2004/02 – n/a | 59 | 80 | 3908 |
| NEW HOLLAND | TK | TK 80 MA | – | 2004/02 – n/a | 59 | 80 | 3908 |
| NEW HOLLAND | TK | TK 85 | – | 2000/01 – 2004/02 | — | — | — |
| NEW HOLLAND | TK | TK 85 M | – | 2000/01 – 2004/02 | — | — | — |
| NEW HOLLAND | TK | TK 90 A | – | 2004/02 – n/a | 65 | 89 | 3908 |
| NEW HOLLAND | TK | TK 90 MA | – | 2004/02 – n/a | 65 | 89 | 3908 |
| NEW HOLLAND | TN | TN 55 | – | 1999/09 – 2003/12 | 37 | 50 | 2930 |
| NEW HOLLAND | TN | TN 55 D | – | 1998/11 – 2003/12 | 37 | 50 | 2930 |
| NEW HOLLAND | TN | TN 55 S | – | 1998/11 – 2003/12 | 37 | 50 | 2930 |
| NEW HOLLAND | TN | TN 55 V | – | 2000/05 – 2004/05 | 37 | 50 | 2930 |
| NEW HOLLAND | TN | TN 60 A | – | 2003/12 – n/a | 43 | 59 | — |
| NEW HOLLAND | TN | TN 60 DA 2WD | – | 2004/01 – 2008/12 | 43 | 59 | 2930 |
| NEW HOLLAND | TN | TN 60 DA 4WD | – | 2004/01 – 2008/12 | 43 | 59 | 2930 |
| NEW HOLLAND | TN | TN 60 SA | – | 2004/01 – 2008/12 | 43 | 59 | 2930 |
| NEW HOLLAND | TN | TN 60 VA | – | 2004/05 – n/a | 43 | 59 | 2930 |
| NEW HOLLAND | TN | TN 65 | – | 1999/09 – 2003/12 | 42 | 57 | 2930 |
| NEW HOLLAND | TN | TN 65 D | – | 1998/11 – 2003/12 | 44 | 60 | 2930 |
| NEW HOLLAND | TN | TN 65 F | 8045.06 | 1999/01 – 2002/12 | 44 | 60 | 3613 |
| NEW HOLLAND | TN | TN 65 N | – | 2000/05 – 2004/05 | 44 | 60 | 2930 |
| NEW HOLLAND | TN | TN 65 S | – | 1998/11 – 2003/12 | 44 | 60 | 2930 |
| NEW HOLLAND | TN | TN 65 V | – | 1999/09 – 2004/05 | 44 | 60 | 2930 |
| NEW HOLLAND | TN | TN 70 | – | 1999/09 – 2003/12 | 51 | 69 | 2930 |
| NEW HOLLAND | TN | TN 70 A | – | 2003/12 – n/a | 53 | 72 | — |
| NEW HOLLAND | TN | TN 70 D | – | 1998/11 – 2003/12 | 53 | 72 | 2930 |
| NEW HOLLAND | TN | TN 70 DA 2WD | – | 2004/01 – 2008/12 | 53 | 72 | 2930 |
| NEW HOLLAND | TN | TN 70 DA 4WD | – | 2004/01 – 2008/12 | 53 | 72 | 2930 |
| NEW HOLLAND | TN | TN 70 F | – | 2001/10 – 2004/01 | 50 | 68 | — |
| NEW HOLLAND | TN | TN 70 NA | – | 2004/05 – n/a | 53 | 72 | 2930 |
| NEW HOLLAND | TN | TN 70 S | – | 1998/11 – 2003/12 | 53 | 72 | 2930 |
| NEW HOLLAND | TN | TN 70 SA | – | 2003/12 – n/a | 53 | 72 | 2930 |
| NEW HOLLAND | TN | TN 70 VA | – | 2004/05 – n/a | 53 | 72 | 2930 |
| NEW HOLLAND | TN | TN 75 | – | 1999/09 – 2003/12 | 55 | 75 | 2930 |
| NEW HOLLAND | TN | TN 75 A | – | 2003/12 – n/a | 56 | 76 | — |
| NEW HOLLAND | TN | TN 75 D | – | 1998/11 – 2003/12 | 53 | 72 | 2930 |
| NEW HOLLAND | TN | TN 75 DA 2WD | – | 2004/01 – 2008/12 | 56 | 76 | 2930 |
| NEW HOLLAND | TN | TN 75 DA 4WD | – | 2004/01 – 2008/12 | 56 | 76 | 2930 |
| NEW HOLLAND | TN | TN 75 F | – | 1997/09 – 2001/12 | 56 | 76 | 3900 |
| NEW HOLLAND | TN | TN 75 FA 2WD | 8045.05 | 2004/01 – n/a | 55 | 75 | 3908 |
| NEW HOLLAND | TN | TN 75 FA 4WD | 8045.05 | 2004/01 – n/a | 55 | 75 | 3908 |
| NEW HOLLAND | TN | TN 75 N | – | 2000/05 – 2004/05 | 51 | 70 | 2930 |
| NEW HOLLAND | TN | TN 75 NA | – | 2004/05 – n/a | 56 | 76 | 2930 |
| NEW HOLLAND | TN | TN 75 S | – | 1998/11 – 2003/12 | 53 | 72 | 2930 |
| NEW HOLLAND | TN | TN 75 SA | – | 2003/12 – n/a | 56 | 76 | 2930 |
| NEW HOLLAND | TN | TN 75 V | – | 2000/05 – 2004/05 | 51 | 70 | 2930 |
| NEW HOLLAND | TN | TN 75 VA | – | 2004/05 – n/a | 56 | 76 | 2930 |
| NEW HOLLAND | TN | TN 80 F | – | 2001/10 – 2004/01 | 56 | 76 | — |
| NEW HOLLAND | TN | TN 85 FA 2WD | – | 2004/01 – n/a | 62 | 84 | 3908 |
| NEW HOLLAND | TN | TN 85 FA 4WD | NEF4 (F4GE0404A) | 2004/01 – n/a | 62 | 84 | 3908 |
| NEW HOLLAND | TN | TN 90 F | – | 1997/09 – 2001/10 | 66 | 90 | 3908 |
| NEW HOLLAND | TN | TN 95 A | NEF4 (F4GE0454A) | 2005/10 – n/a | 66 | 90 | 4500 |
| NEW HOLLAND | TN | TN 95 DA 2WD | NEF4 (F4GE0454A) | 2004/01 – 2008/12 | 66 | 90 | 4500 |
| NEW HOLLAND | TN | TN 95 DA 4WD | – | 2004/01 – 2008/12 | 66 | 90 | 4500 |
| NEW HOLLAND | TN | TN 95 F | NEF4 (F4GE0454A) | 2001/10 – 2004/10 | 66 | 90 | — |
| NEW HOLLAND | TN | TN 95 FA 2WD | NEF4 (F4GE0454A) | 2004/01 – n/a | 68 | 92 | 3908 |
| NEW HOLLAND | TN | TN 95 FA 4WD | – | n/a – n/a | 68 | 92 | 3908 |
| NEW HOLLAND | TN | TN 95 NA | – | 2004/01 – n/a | 68 | 92 | — |
| NEW HOLLAND | TN | TN 95 VA | – | 2004/12 – n/a | 68 | 92 | 3908 |
| NEW HOLLAND | TT | TT 50 | – | 2009/03 – n/a | 35 | 48 | — |
| NEW HOLLAND | TT | TT 50 B | – | n/a – n/a | — | — | — |
| NEW HOLLAND | TT | TT 55 | – | 2009/03 – n/a | 40 | 55 | — |
| NEW HOLLAND | TT | TT 55 B | – | n/a – n/a | — | — | — |
| NEW HOLLAND | TT | TT 55 D | – | n/a – n/a | — | — | — |
| NEW HOLLAND | TT | TT 65 | – | 2009/03 – n/a | 48 | 65 | — |
| NEW HOLLAND | TT | TT 65 B | – | n/a – n/a | — | — | — |
| NEW HOLLAND | TT | TT 65 D | – | n/a – n/a | — | — | — |
| NEW HOLLAND | TT | TT 75 | – | 2009/03 – n/a | 55 | 75 | — |
| NEW HOLLAND | TT | TT 75 D | – | n/a – n/a | — | — | — |
| NEW HOLLAND | TT | TT 75 DT | – | n/a – n/a | — | — | — |
| NEW HOLLAND | XX.56 | 55-56 | – | 1989/01 – n/a | 40 | 55 | — |
| NEW HOLLAND | XX.56 | 55-56 LM | – | 1989/01 – n/a | 40 | 55 | — |
| NEW HOLLAND | XX.56 | 55.56 DT | – | 1989/01 – n/a | 40 | 55 | — |
| NEW HOLLAND | XX.56 | 60-56 | – | 1989/01 – n/a | — | — | — |
| NEW HOLLAND | XX.56 | 60.56 DT | – | 1989/01 – n/a | — | — | — |
| NEW HOLLAND | XX.56 | 65-56 | – | 1989/01 – n/a | — | — | — |
| NEW HOLLAND | XX.56 | 65.56 DT | – | 1989/01 – n/a | — | — | — |
| NEW HOLLAND | XX.56 | 70.56 | – | 1989/01 – n/a | — | — | — |
| NEW HOLLAND | XX.56 | 70.56 DT | – | 1989/01 – n/a | — | — | — |
| NEW HOLLAND | XX.56 | 75-56 S | – | n/a – n/a | — | — | — |
Originalūs numeriai (2)
Ši dalis nurodyta kaip žemiau išvardytų originalių numerių atitikmuo. Jei jūsų technikos dalių kataloge yra bent vienas iš jų, tai ta prekė, kurios ieškote.
| Numeris | Markė |
|---|---|
| 05098911 | NEW HOLLAND |
| 84356447 | NEW HOLLAND |
Pristatymas ir garantija
Išsiunčiame per 1–4 darbo dienas nuo apmokėjimo. Tikslią išsiuntimo datą matote atsiskaitymo lange. Kainos nurodytos su 21 % PVM, šalia nurodyta kaina be PVM. Verslo klientams iš kitos ES šalies su galiojančiu PVM mokėtojo kodu atsiskaitant taikomas 0 % PVM. Vartotojams taikoma įstatyminė 2 metų ES garantija; verslo klientams taikome savo 12 mėnesių garantiją, žr. Grąžinimai ir pinigų grąžinimas.
